2' x 3' Installation - 4 Piece Assembly Nyloplast Detail

Filename:
2' x 3' Installation - 4 Piece Assembly Nyloplast Detail.dwg

Download Document (dwg)
2' x 3' Installation - 4 Piece Assembly Nyloplast Detail

This document is the 2' x 3' Installation - 4 Piece Assembly Nyloplast Detail. Illustrations show the various components.

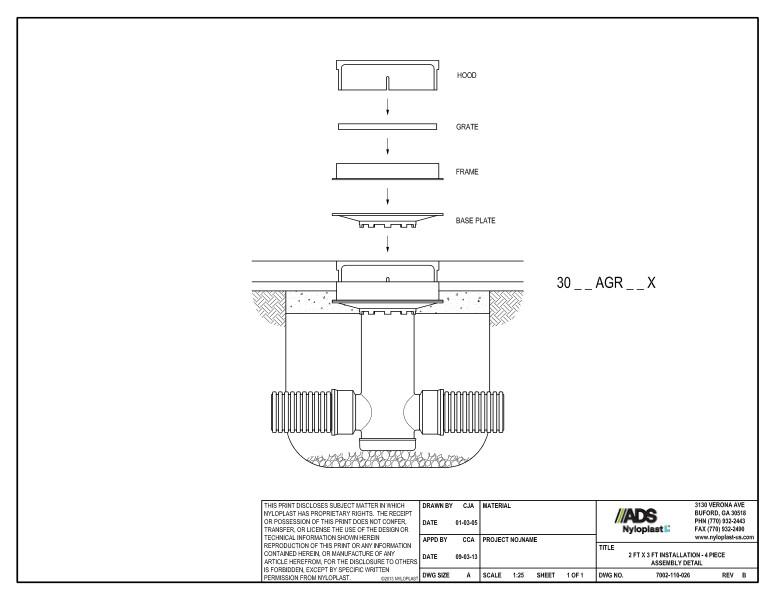

The illustration shows how the hood, grate, frame and base plate fit into the drain basin.

2' x 3' Installation - 4 Piece Assembly Nyloplast Detail
