15" Solid Cover Assembly Nyloplast Detail
15" Solid Cover Assembly Nyloplast Detail.dwg
This document is the 15" Solid Cover Assembly Nyloplast Detail. It shows the nyloplast grate and frame with dimensions.

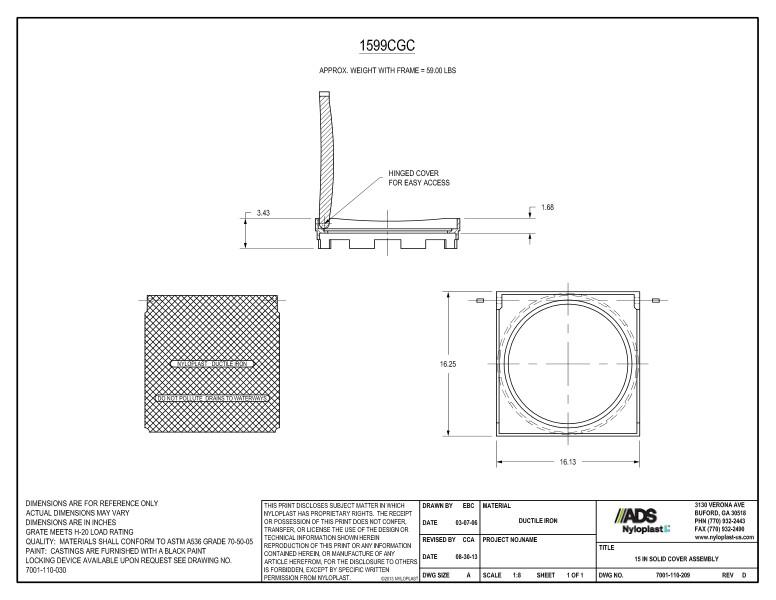

The illustrations show the nyloplast 15” grate and Solid Cover with dimensions with approximate weight of frame 59.00 LBS. A top and side view of hinged grate for easy access is shown.
Notes detail that dimensions are for reference only and in inches. Grate meets H-20 load rating. Materials shall conform per ASTM A536 grade 70-50-05. Castings are furnished with a black paint. The locking device is available upon request.
