8" - 24" StormTech Dual Wall Fabricated Soil Tight Plain End Reducing Double Manifolds (StormTech Dual Wall HDPE Fittings)

Filename:
8" - 24" StormTech Dual Wall Fabricated Soil Tight Plain End Reducing Double Manifolds (StormTech Dual Wall HDPE Fittings).pdf

8" - 24" StormTech Dual Wall Fabricated Soil Tight Plain End Reducing Double Manifolds (StormTech Dual Wall HDPE Fittings)

This document is the 8" - 24" StormTech Dual Wall Fabricated Soil Tight Plain End Reducing Double Manifolds (StormTech Dual Wall HDPE Fittings). Diagrams and table included.

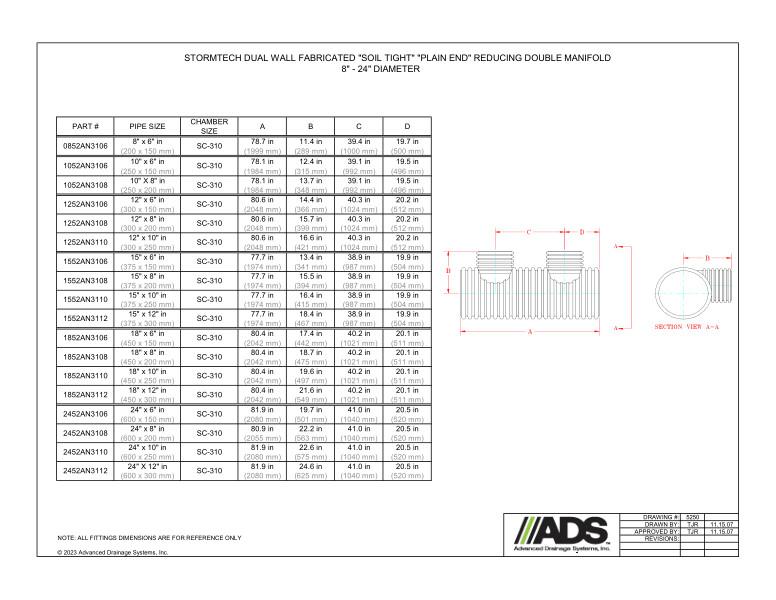

StormTech Dual Wall Fabricated “Soil Tight” “Plain End” Reducing Double Manifold 8" - 24" diameter shows the side view and section view manifold diagrams with A/B/C/D dimensions.

The table lists the part number, pipe size, chamber size and A/B/C/D dimension values.

All fittings dimensions are for reference only.
