48" x 12" - 48" x 24" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Wyes Fittings)
Filename:
48" x 12" - 48" x 24" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Wyes Fittings).pdf
![48" x 12" - 48" x 24" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Wyes Fittings)](https://assets.adspipe.com/m/2a8c4fff7f376e44/webimage-48-x-12-48-x-24-Fabricated-Reducing-Wyes-HDPE-Dual-Wall-Fabricated-Wyes-Fittings.jpg)
This document is the 48" x 12" - 48" x 24" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Wyes Fittings). Diagrams with table provided.

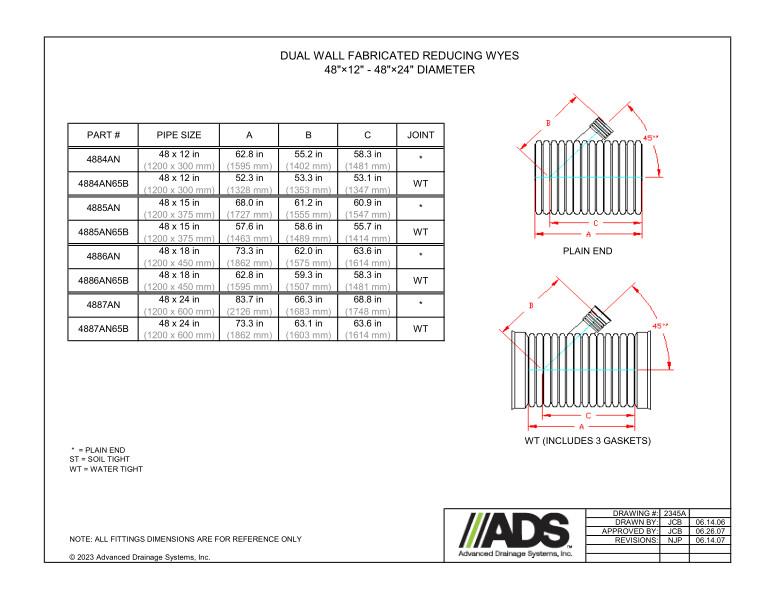

The diagram of the Dual Wall Fabricated Reducing Wyes 48" x 12" - 48" x 24" diameter shows the Plain End Wye with A/B/C dimensions and 45 degree arc. The WT (includes 3 gaskets) Wye is shown with A/B/C dimensions and 45 degree arc.
A table with part number, pipe size and A/B/C/Joint dimensions is provided.
All fittings dimensions are for reference only.
