12" - 30" Fabricated Water Tight Bell-Bell 90 Degree Manifold Bends (HDPE Dual Wall Fabricated Manifolds Fittings)
Filename:
12" - 30" Fabricated Water Tight Bell-Bell 90 Degree Manifold Bends (HDPE Dual Wall Fabricated Manifolds Fittings).pdf
This document is the 12" - 30" Fabricated Water Tight Bell-Bell 90 Degree Manifold Bends (HDPE Dual Wall Fabricated Manifolds Fittings). A bend diagram with table provided.

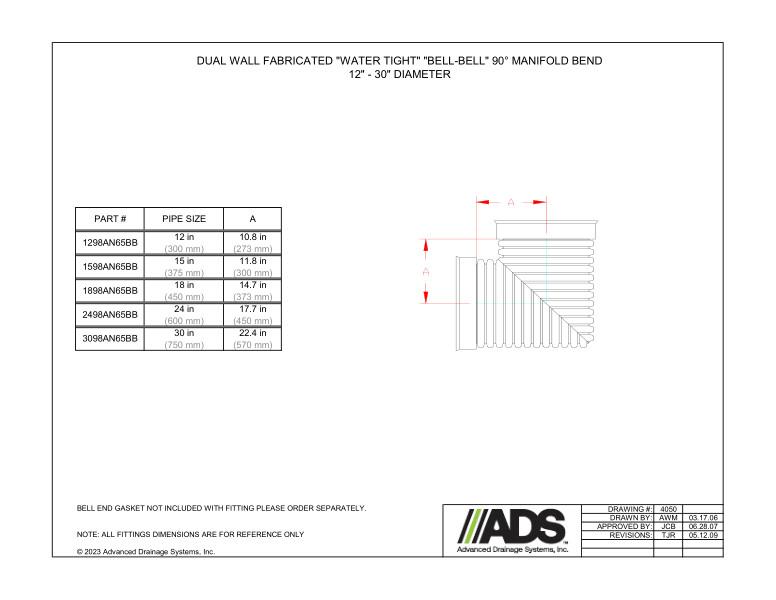

The dual wall fabricated “Water Tight” “Bell-Bell” 90 degree Manifold Bend 12" - 30" diameter is shown in a diagram that shows A dimensions.
A table with the information for part number, pipe size and A sizes is provided.
Bell end gasket not included with fitting, must be ordered separately. All fittings dimensions are for reference only.
