205E 12-30 SaniTite HP Booted (Cast-in) Structure Connection with Sleeve or PVC Adapter Detail
Filename:
205E 12-30 SaniTite HP Booted (Cast-in) Structure Connection with Sleeve or PVC Adapter Detail.dwg
![205E 12-30 SaniTite HP Booted (Cast-in) Structure Connection with Sleeve or PVC Adapter Detail](https://assets.adspipe.com/m/629d0c5978d2f421/webimage-205E-12-30-SaniTite-HP-Booted-Cast-in-Structure-Connection-with-Sleeve-or-PVC-Adapter-Detail.jpg)

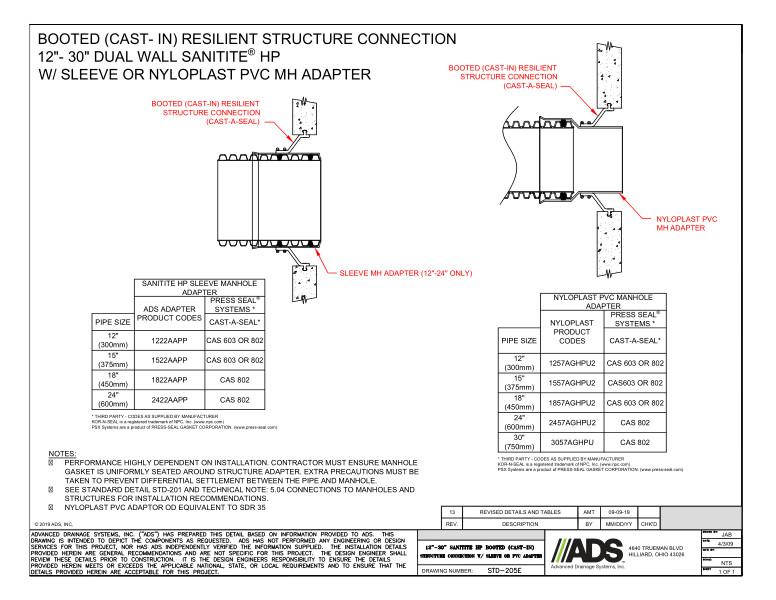

This document is the 205E 12-30 SaniTite HP Booted (Cast In) Structure Connection with Sleeve or PVC Adapter Detail. Diagrams and charts provided.
The diagram shows the Booted (Cast In) Resilient Structure Connection (Cast-A-SEAL) and sleeve MH adapter.
A second diagram shows the Booted (Cast In) Resilient Structure Connection (Cast-A-SEAL) and Nyloplast PVC MH adapter.
A chart provides values for the SaniTite HP Sleeve Manhole Adapter for pipe size, ADS Adapter product codes, Press Seal systems/ Cast-A-SEAL.
A second chart provides values for the Nyloplast PVC MH adapter for pipe size, Nyloplast Adapter product codes, Press Seal systems/ Cast-A-SEAL.
Notes state that performance is highly dependent on installation. Manhole gasket must be uniformly seated around structure adapter. Take precautions to prevent differential settlement between the pipe and manhole.
