30" × 12" - 36" × 24" Reducers IB Bell/Bell (HP Storm Reducers Fittings Manual)
Filename:
30" × 12" - 36" × 24" Reducers IB Bell/Bell (HP Storm Reducers Fittings Manual).pdf

This document is the 30”x12”-36”x24” Reducers IB/Bell (HP Storm Reducers Fittings Manual). Table with pipe size and diagram with descriptions included.

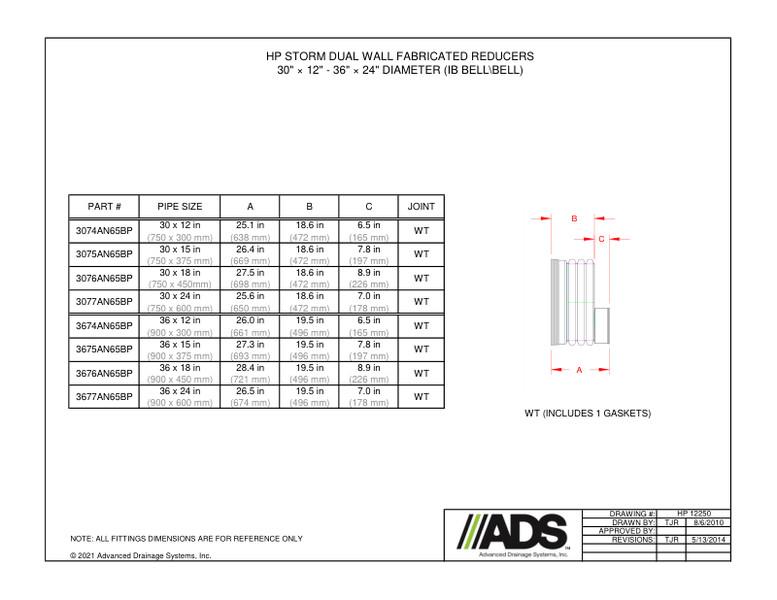

The HP Storm Dual Wall Fabricated Reducers 30”x12”-36”x24” diameter (IB/Bell) is shown with a chart that lists the values for Part number, pipe size, A/B/C and Joint. Diagram with WT (includes 1 gasket) provided.
