4"-24" Fabricated 22.5 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings)
Filename:
4"-24" Fabricated 22.5 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings).pdf
![4"-24" Fabricated 22.5 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings)](https://assets.adspipe.com/m/d5d920681aa438e/webimage-4-24-Fabricated-22-5-Degree-Bends-HDPE-Dual-Wall-Fabricated-Bends-Fittings.jpg)

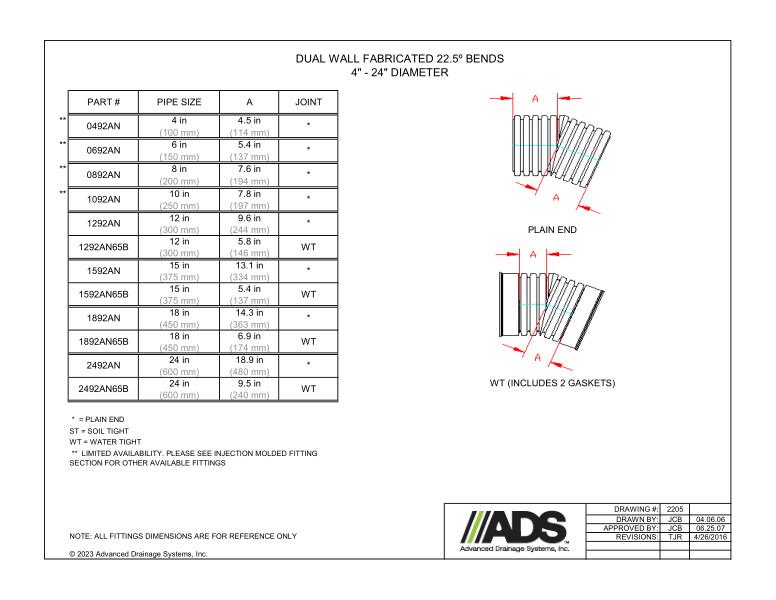

This document is the 4”-24” Fabricated 22.5 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings). Plain end & watertight diagrams and table provided.
The illustrations of the plain end Bend shows the angle and A dimensions. The WT (includes 2 gaskets) Bend shows the angle and A dimensions.
A table with part number, pipe size and A/Joint dimensions is provided.
All fittings dimensions are for reference only.
