This document is the SCH 40 Spigot Dimensions Nyloplast Detail. Sizes, dimensions and spigot illustration shown.

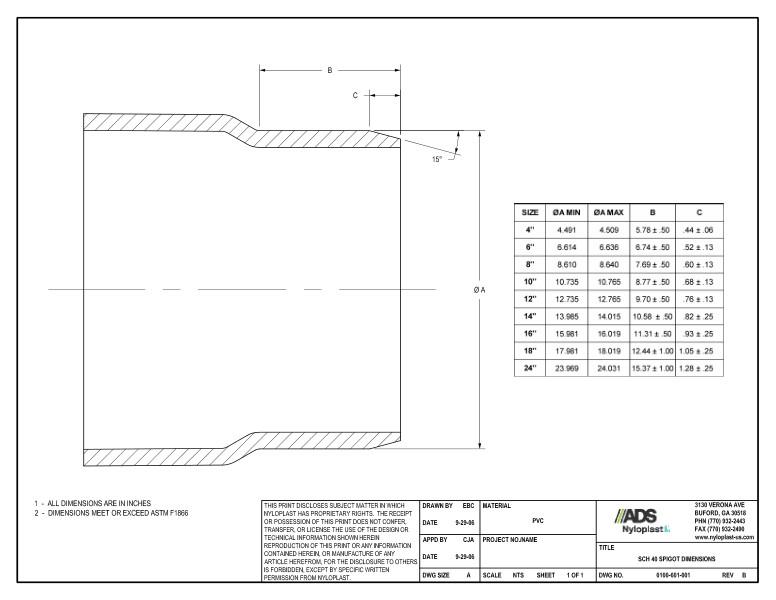

Sizes 4” to 24” are listed in the chart with corresponding A MIN, B MIN, B & C lengths. An illustration showing the A/B/C dimensions is provided.
