Inserta Tee Connection Details
Filename:
Inserta Tee Connection Details.dwg

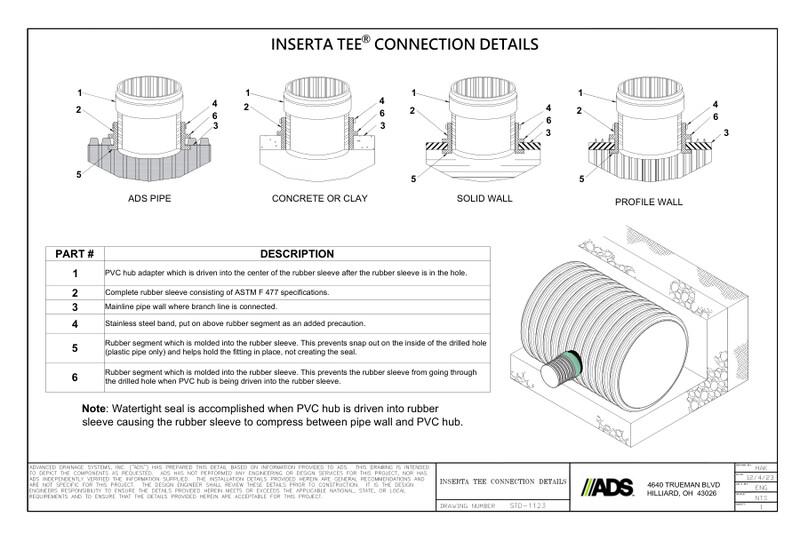

This document explains Inserta Tee Connection Details. Details of the Inserta Tee connections with description table provided.
Inserta tee connection details shown are the ADS pipe, concrete or clay, solid wall and profile wall.
The table provides the descriptions of the connection part number as indicated in the details.
Watertight seal is accomplished when PVC hub is driven into rubber sleeve causing the rubber sleeve to compress between pipe wall and PVC hub.
