903 Arc 36 Chamber and End Cap Detail

Filename:
903 Arc 36 Chamber and End Cap Detail.dwg

Download Document (dwg)
903 Arc 36 Chamber and End Cap Detail

This document is the 903 Arc 36 Chamber and End Cap Detail. Details show the chamber and end cap with descriptions and dimensions.

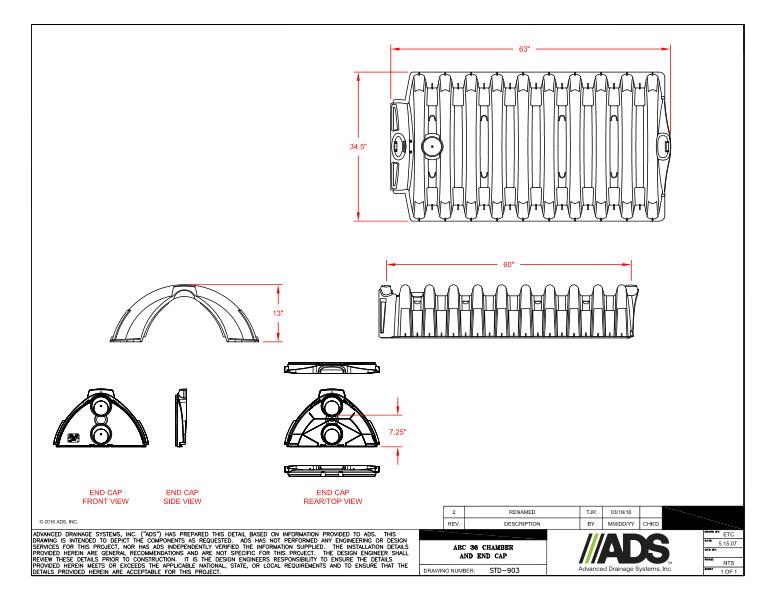

The details show the end cap front view, end cap side view and end cap rear/top view. Chamber dimensions are included.

903 Arc 36 Chamber and End Cap Detail
