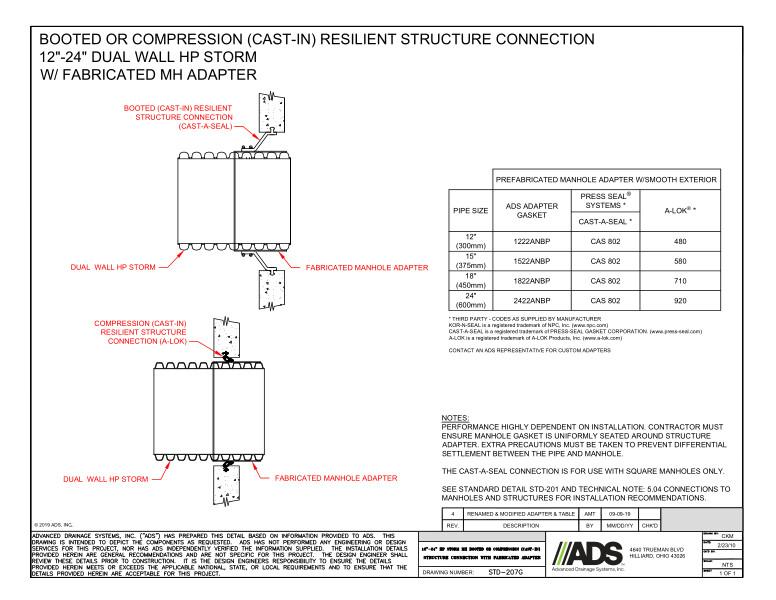

This document is the 12”-24” HP Storm Manhole Booted or Compression (Cast-In) Structure Connection with Fabricate Adapter. Diagrams with table provided.

The top diagram of the Booted or Compression (Cast-In) Resilient Structure Connection 12”-24” Dual Wall HP Storm with Fabricated MH Adapter shows the booted (cast-in) resilient structure connection (cast-a-seal), Dual wall HP storm and fabricated manhole adapter.

The bottom diagram shows the compression (cast-in) resilient structure connection (A-Lok), dual HP storm and fabricated manhole adapter.

The prefabricated manhole adapter with smooth exterior table lists the values for pipe size, ADS adapter gasket, press seal systems/cast-a-seal and A-Lok.

Notes state that performance dependent on installation. Ensure that manhole gasket is uniformly seated around structure adapter to prevent differential settlement between the pipe and manhole. The cast-a-seal connection is for use with square manholes only. See standard detail STD-201 and technical note 5.04 connections to manholes and structures for installation recommendations.
