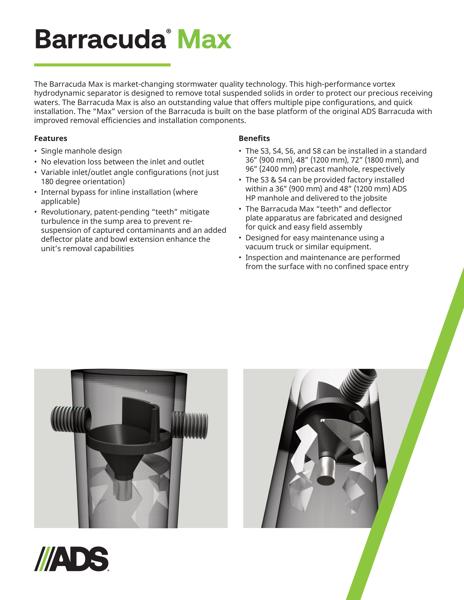

This document is the ADS Barracuda Sell Sheet. It describes the features and benefits of the Barracuda Max Stormwater System.

The Barracuda Max is market-changing stormwater quality technology. This high-performance vortex hydrodynamic separator is designed to remove total suspended solids in order to protect our precious receiving waters. The Barracuda Max is also an outstanding value that offers multiple pipe configurations, and quick installation. The “Max” version of the Barracuda is built on the base platform of the original ADS Barracuda with improved removal efficiencies and installation components.

Features include Single manhole design, No elevation loss between the inlet and outlet, Variable inlet/outlet angle configurations (not just 180 degree orientation), Internal bypass for inline installation (where applicable) and Revolutionary, patent-pending “teeth” mitigate turbulence in the sump area to prevent re-suspension of captured contaminants and an added deflector plate and bowl extension enhance the unit’s removal capabilities.

Benefits include Internal components are in stock for quick delivery, The S3, S4, S6, and S8 can be installed in a standard 36” (900 mm), 48” (1200 m), 72” (1800 m), and 96” (2400 m) precast manhole, respectively, The S3 & S4 can be provided factory installed within a 36” (900 mm) and 48” (1200 mm) ADS HP manhole and delivered to the jobsite,

The Barracuda Max “teeth” and deflector plate apparatus are fabricated and designed for quick and easy field assembly, Designed for easy maintenance using a vacuum truck or similar equipment and Inspection and maintenance are performed from the surface with no confined space entry.

Barracuda specifications for materials and design, performance and installation are explained with supporting tables and illiustrations.
