903A Arc 36 Side Port Coupler Detail

Filename:
903A Arc 36 Side Port Coupler Detail.dwg

Download Document (dwg)
903A Arc 36 Side Port Coupler Detail

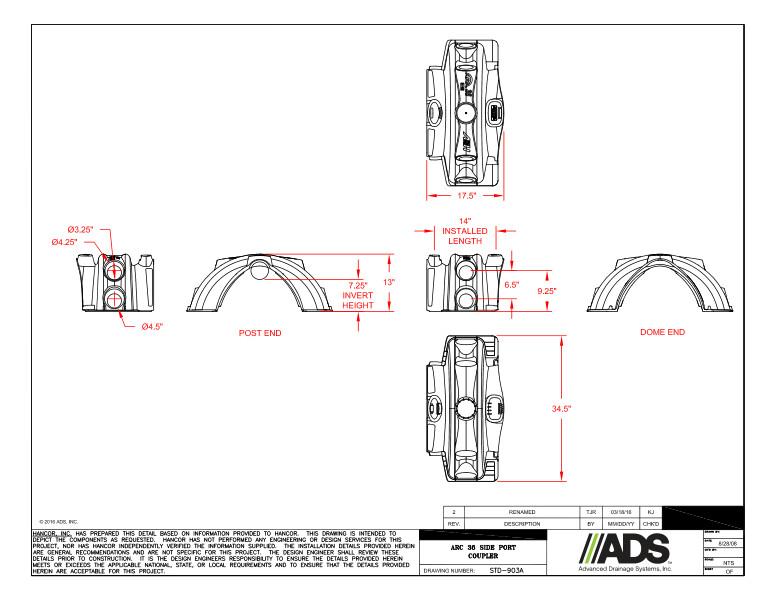

This document is the 903A Arc 36 Side Port Coupler Detail. Details show the coupler with descriptions and dimensions.

The details show the post end, dome end, installed length and invert. Coupler dimensions are included.

903A Arc 36 Side Port Coupler Detail
