Aquabox Pipe Insertion Detail

Filename:
Aquabox Pipe Insertion Detail.pdf

Aquabox Pipe Insertion Detail

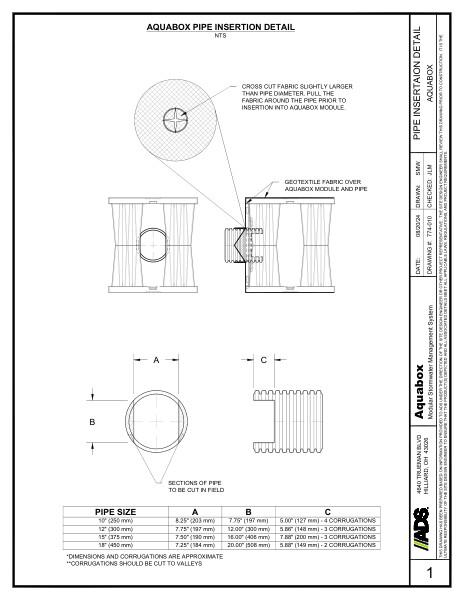

This document is the Aquabox Pipe Insertion Detail. Cross sections of the pipe insertion details with pipe table provided.

The 1st detail shows the cross cut fabric slightly larger than pipe diameter. Pull the fabric around the pipe prior to insertion into Aquabox module. The location of the geotextile fabric over Aquabox module and pipe noted. Additional diagrams show the sections of pipe to be cut in the field.

The pipe table has the measurements for pipe size and A/B/C. Dimensions and corrugations are approximate and the corrugations should be cut to valleys.
