36" - 60" Fabricated Soil Tight Plain End Double Manifold (HDPE Dual Wall Fabricated Manifolds Fittings)

Filename:
36" - 60" Fabricated Soil Tight Plain End Double Manifold (HDPE Dual Wall Fabricated Manifolds Fittings).pdf

36" - 60"  Fabricated Soil Tight Plain End Double Manifold (HDPE Dual Wall Fabricated Manifolds Fittings)

This document is the 36" - 60" Fabricated Soil Tight Plain End Double Manifold (HDPE Dual Wall Fabricated Manifolds Fittings). A diagram with table provided.

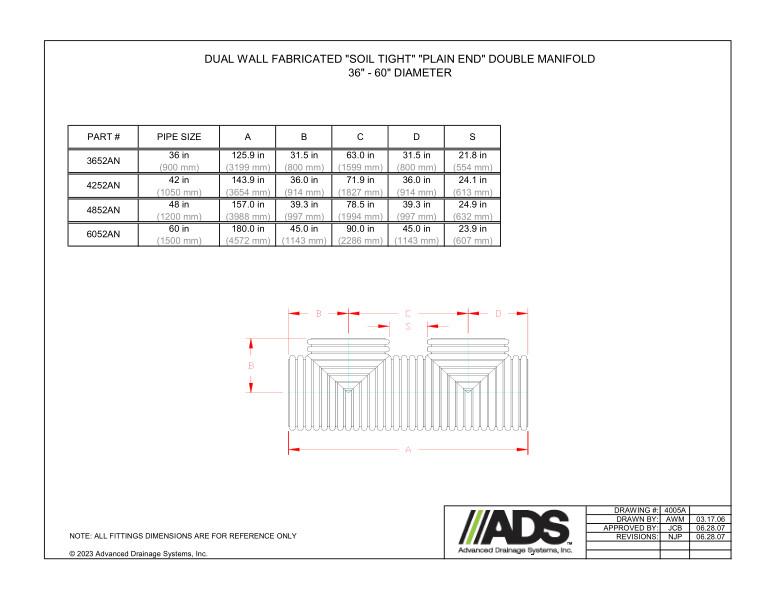

The dual wall Fabricated “Soil Tight” “Plain End” Double Manifold 36" - 60" diameter is shown in a diagram that shows A/B/C/D/S dimensions.

A table with the information for part number, pipe size and A/B/C/D/S sizes is provided.

All fittings dimensions are for reference only.
