30 x 30 HP Tee with Gasketed SWR Bell Nyloplast Detail
Filename:
30 x 30 HP Tee with Gasketed SWR Bell Nyloplast Detail.dwg
![30 x 30 HP Tee with Gasketed SWR Bell Nyloplast Detail](https://assets.adspipe.com/m/54c9196f69a24aa3/webimage-30-x-30-HP-Tee-with-Gasketed-SWR-Bell-Nyloplast-Detail.jpg)

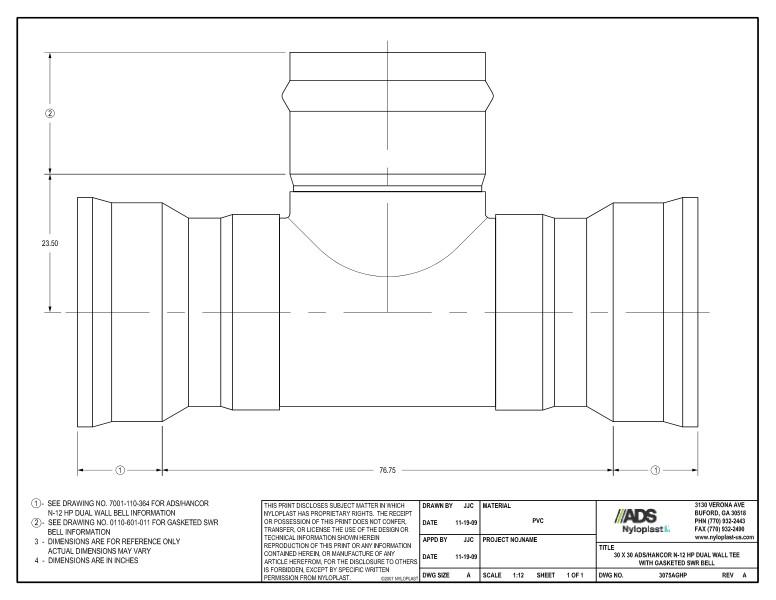

This document is the 30 x 30 HP Tee with Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references ADS/Hancor N-12 HP Dual Wall Bell for more information. A note on dimension 2 references Gasketed SWR Bell for more information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
