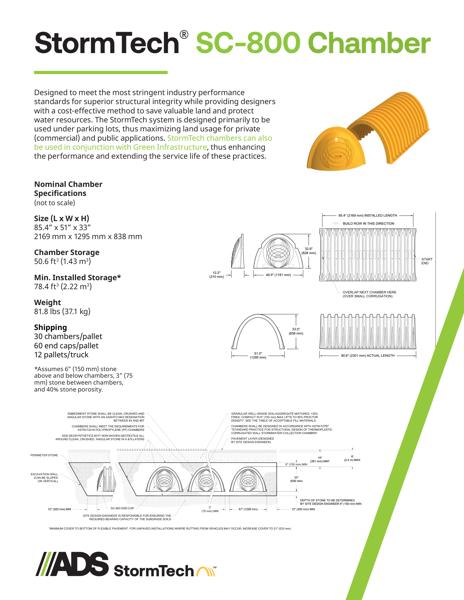

This document details the StormTech SC-800 Chamber. Chamber specs, acceptable fill materials, diagrams and Isolator Row Plus O&M Manual included.

Designed to meet the most stringent industry performance standards for superior structural integrity while providing designers with a cost-effective method to save valuable land and protect water resources. The StormTech system is designed primarily to be used under parking lots, thus maximizing land usage for private (commercial) and public applications. StormTech chambers can also be used in conjunction with Green Infrastructure, thus enhancing the performance and extending the service life of these practices.

Nominal chamber specifications with cross section diagrams shown.

StormTech SC-800 specifications cover cumulative storage volumes per chamber, stone per chamber/volume excavation and acceptable fill materials with descriptions and classifications. A cross section of the fill material shown.

Technical specifications detail the chamber dimensions, cross sections and chart with part number and dimensions.

SC-800 Isolator Row Plus detail shows the cross section of the pipe with notes on inspection & maintenance.

Isolator Row Plus O&M Manual explains the Isolator Row Plus, discusses inspection/maintenance with step by step procedures, the installation guide and warranty information.

ADS 0601T/O Nonwoven Geotextile specification with scope, filter fabric requirements/properties and dimensions included. ADS Plus Woven Geotextile specification details the scope, filter fabric properties and dimensions.
