18 x 4 N-12 Dual Wall Tee Nyloplast Detail
Filename:
18 x 4 N-12 Dual Wall Tee Nyloplast Detail.pdf

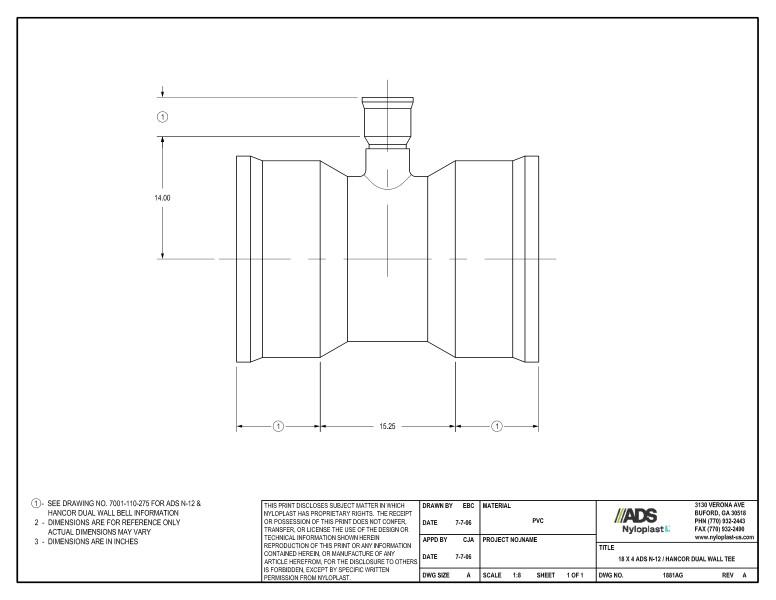

![18 x 4 N-12 Dual Wall Tee Nyloplast Detail](https://assets.adspipe.com/m/13b9540b3d504158/webimage-18-x-4-N-12-Dual-Wall-Tee-Nyloplast-Detail.jpg)
This document is the 18 x 4 N-12 Dual Wall Tee Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
