10" Solid Locking Cover Assembly (Drain Basin) Nyloplast Detail
10" Solid Locking Cover Assembly (Drain Basin) Nyloplast Detail.dwg
This document is the 10" Solid Locking Grate Assembly (Drain Basin) Nyloplast Detail. It shows the grate illustrations with descriptions.

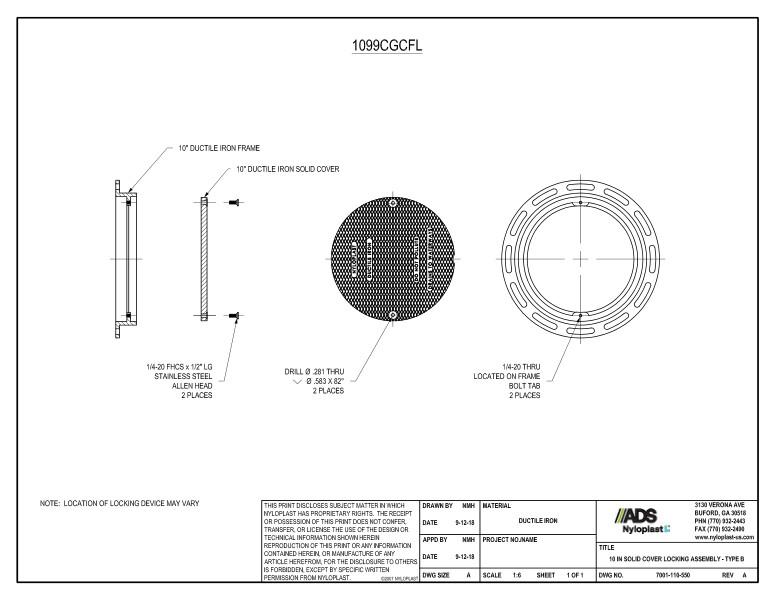

The side view illustration shows the 10" ductile iron frame, 10" ductile iron solid cover and ¼-20 FHCS x 1/2” stainless steel allen head screws in 2 places. The top down view shows the grate drill hole. The top down view of the frame shows the ¼-20 thru located on frame with bolt tab in 2 places.
Location of locking device may vary.
