24" HP Repair Coupling Nyloplast Detail

Filename:
24" HP Repair Coupling Nyloplast Detail.dwg

24" HP Repair Coupling Nyloplast Detail

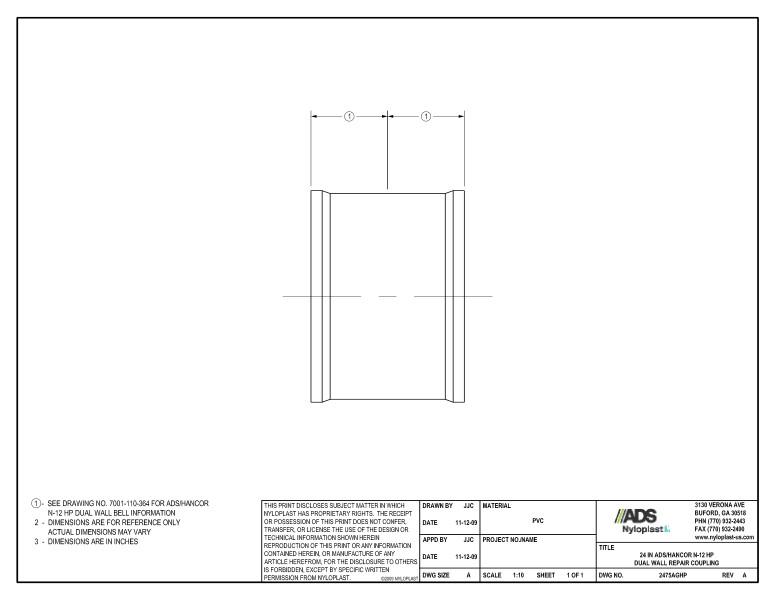

This document is the 24” HP Repair Coupling Nyloplast Detail. Illustration shown with dimensions and notes.

The illustration shows the dimension.

Note 1 refers to a drawing for ADS/Hancor N-12 HP Bell information. Note 2 states that dimensions are for reference only. Note 3 states that dimensions are in inches.
