IPS/SCH 40 Gasketed Bell Gravity Applications Inserta Tee Detail
IPS/SCH 40 Gasketed Bell Gravity Applications Inserta Tee Detail.pdf

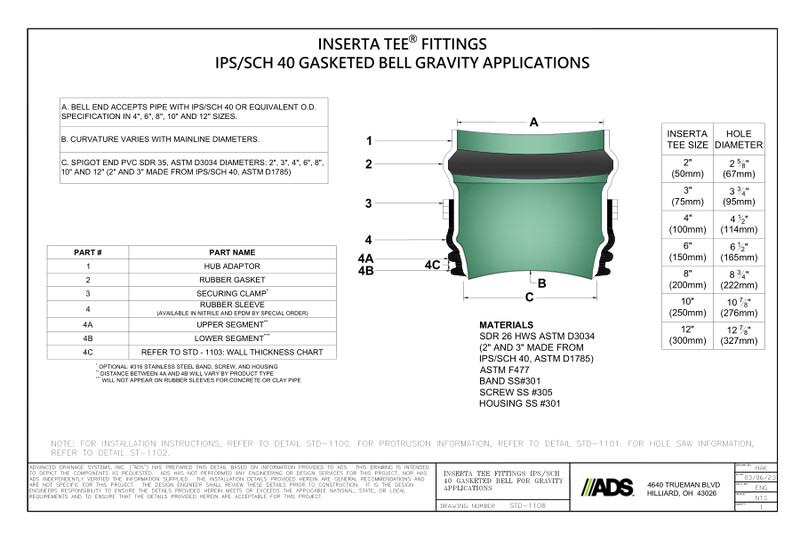

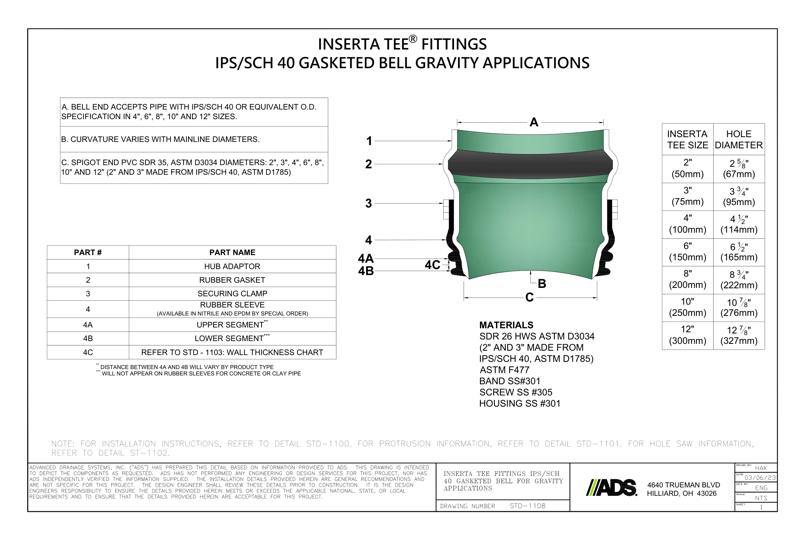

The drawing gives information on an Inserta Tee® connection for IPS/SCH 40 gasketed bell gravity applications.
An Inserta Tee connection is made of a PVC hub adaptor, a rubber gasket and a stainless steel securing clamp. The bell end of the Inserta Tee accepts pipe with IPS/SCH 40 or equivalent outside diameter specifications in 4”, 6”, 8”, 10” and 12” (100, 150, 200, 250 and 300 mm) sizes.
The spigot end connects to PVC SDR 26 and ASTM D3034 pipe in 4”, 6”, 8”, 10” and 12” (100, 150, 200, 250 and 300 mm) sizes.
The curvature of the Inserta Tee connector varies based on the mainline pipe diameter.
Other information shows the hole diameter that must be cored into the mainline based on the Inserta Tee’s size. The recommended method of cutting the hole is with a hole saw for PVC and other plastics and a diamond bit for concretes, clay, FRP and D.I. Hole saw are available for purchase or rent.
