8" - 10" SB2 Adapters (HDPE Single Wall Miscellaneous Fittings)

This document is the 8" - 10" SB2 Adapters (HDPE Single Wall Miscellaneous Fittings). Diagrams with descriptions and table included.

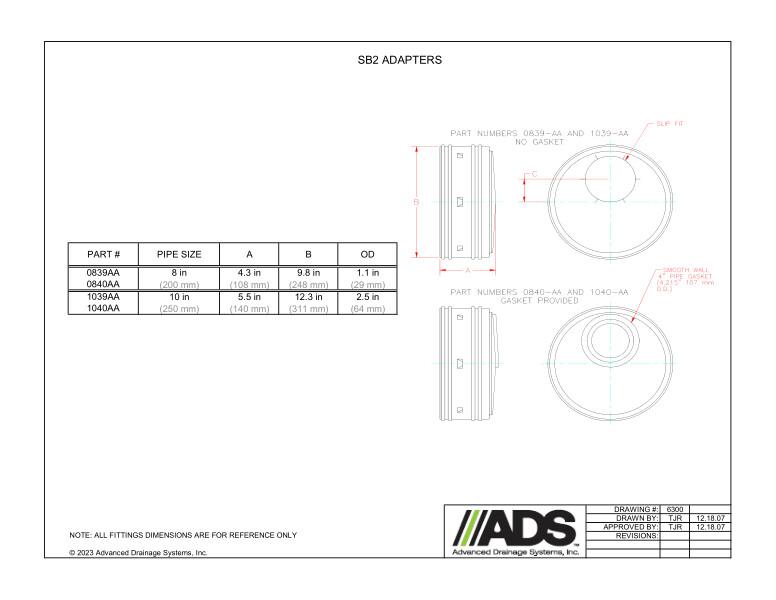

The SB2 Adapters diagram shows the no gasket adapter with A/B/C dimensions and slip fit. The gasket provided drawing shows the adapter with smooth wall 4” pipe gasket.

The table lists the part number, pipe size and A/B/OD dimension values.

All fittings dimensions are for reference only.

8" - 10" SB2 Adapters (HDPE Single Wall Miscellaneous Fittings)
