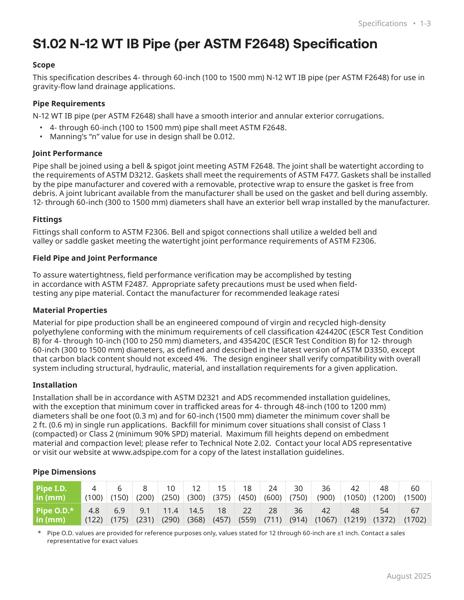

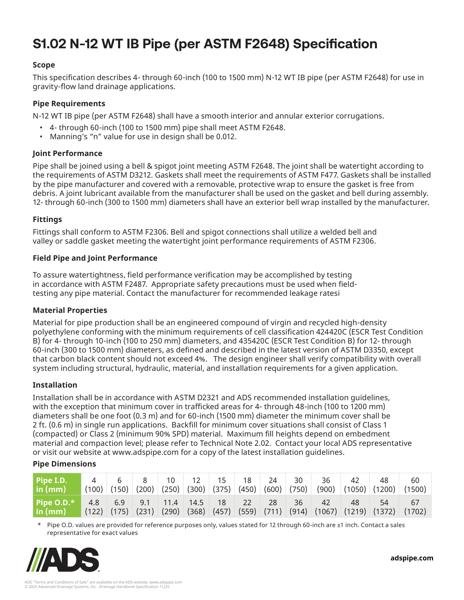

N-12 WT IB (per ASTM F2648) Specification
N-12 WT IB (per ASTM F2648) Specification.pdf
The ADS® N-12® WT IB (per ASTM F2648) specification document covers pipe requirements, joint performance, fittings, field pipe and joint performance, material properties, installation information.
Pipe requirements for the N-12 ST IB (per ASTM F2648) include a smooth interior and annular exterior corrugations, 4”-60” (100 to 1550 mm) pipe shall meet ASTM F2648 . Manning’s “n” value for use in design shall be 0.012.
Pipe shall be joined using a bell & spigot joint meeting ASTM F2648. The joint shall be watertight according to the requirements of ASTM D3212. Gaskets shall meet the requirements of ASTM F477. Gaskets shall be installed by the pipe manufacturer and covered with a removable, protective wrap to ensure the gasket is free from debris. A joint lubricant available from the manufacturer shall be used on the gasket and bell during assembly. 12”-60” (300 to 1500 mm) diameters shall have an exterior bell wrap installed by the manufacturer.
Fittings need to conform to ASTM F2306. Bell and spigot connections will utilize a welded bell and valley or saddle gasket meeting the watertight joint performance requirements of ASTM F2306.
To assure watertightness, field performance verification may be accomplished by testing in accordance with ASTM F2487 for the N-12 WT IB (per ASTM F2648) pipe.
Material for pipe production shall be an engineered compound of virgin and recycled high density polyethylene conforming with the minimum requirements of cell classification 424420C (ESCR Test Condition B) for 4”-10” (100 to 250 mm) diameters, and 435420C (ESCR Test Condition B) for 12- through 60-inch (300 to 1500 mm) diameters, as defined and described in the latest version of ASTM D3350, except that carbon black content should not exceed 4%.
Installation is in accordance with ASTM D2321 and ADS recommended installation guidelines, with the exception that minimum cover in trafficked areas for 4”-48”(100 to 1200 mm) diameters shall be one foot. (0.3 m) and for 60” (1500 mm) diameter the minimum cover shall be 2 ft. (0.6 m) in single run
applications. Backfill for minimum cover situations shall consist of Class 1 (compacted), Class 2 (minimum 90% SPD) or Class 3 (minimum 95% SPD) material. Maximum fill heights depend on embedment material and compaction level; please refer to Technical Note 2.02.
A Pipe Dimensions table is included for reference.
