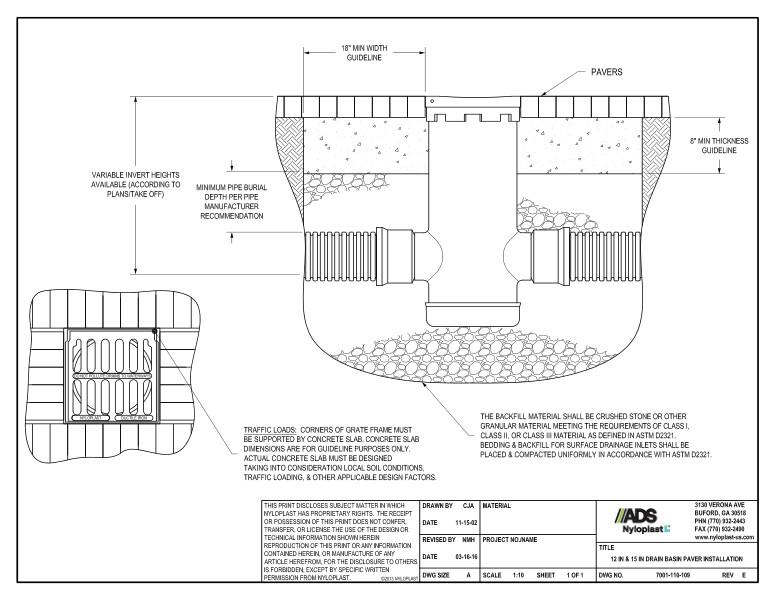

This document is the 15" Drain Basin Paver Installation Nyloplast Detail. Illustrations with notes and description shown.

The detail shows the side view of the drain basin structure with18” minimum width guideline,8” minimum thickness guideline, pavers, variable invert heights, variable pump burial depth and backfill material shall be crushed stone or other granular material. A top view of the structure shows traffic loads and the corners of the grate must be supported by concrete slab.
