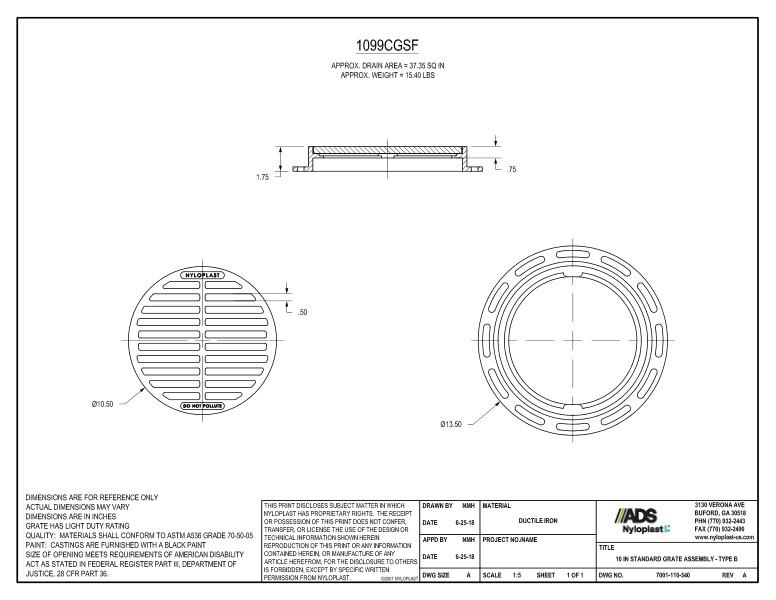

This document is the 10" Standard Grate Assembly (Drain Basin) Nyloplast Detail. It shows the nyloplast ductile grate and frame with dimensions.

The top down illustration shows the nyloplast grate with dimensions with approximate drain area of 37.35 SQ inches and approximate weight of 15.40 LBS. A top view of the frame and side view is shown.

Notes detail that dimensions are for reference only and in inches. Grate has light duty rating. Materials shall be ductile iron per ASTM A536 grade 70-50-05. Castings are furnished with a black paint. Size of opening meets requirements of American Disability Act.
