210 48" Polypropylene Basin with Marmac Wrap Detail
Filename:
210 48" Polypropylene Basin with Marmac Wrap Detail.dwg
![210 48" Polypropylene Basin with Marmac Wrap Detail](https://assets.adspipe.com/m/4a5da8e322b1af5d/webimage-210-48-Polypropylene-Basin-with-Marmac-Wrap-Detail.jpg)

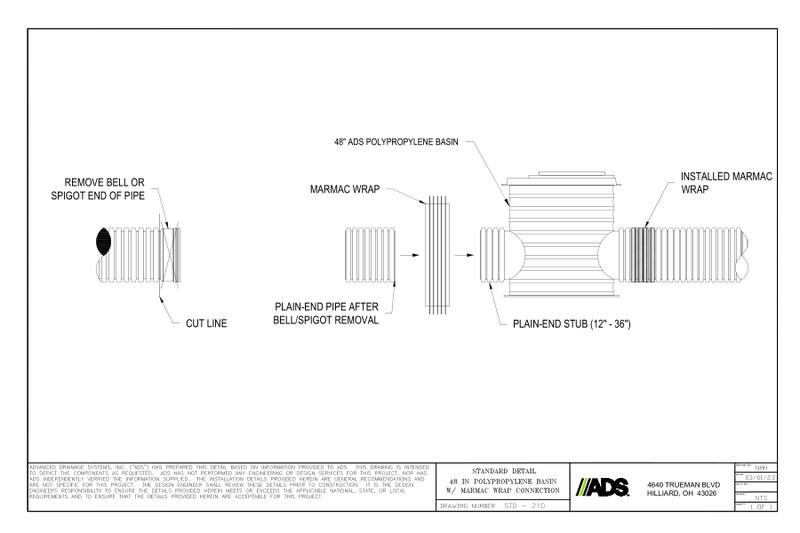

This document is the 210 48" Polypropylene Basin with Marmac Wrap Detail. Assembly of basin shown in details.
The standard details show the 48” ADS polypropylene basin with a cut line to remove bell or spigot end of pipe. The plain-end pipe after bell/spigot removal leads to the marmac wrap and then assembled into the plain end stub (12”-36”).
The installed marmac wrap is shown.
