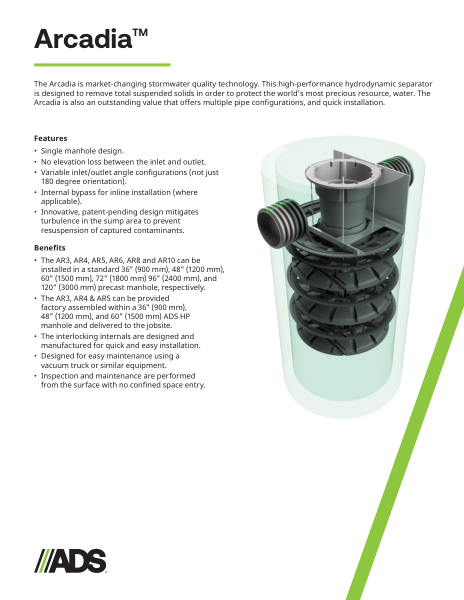

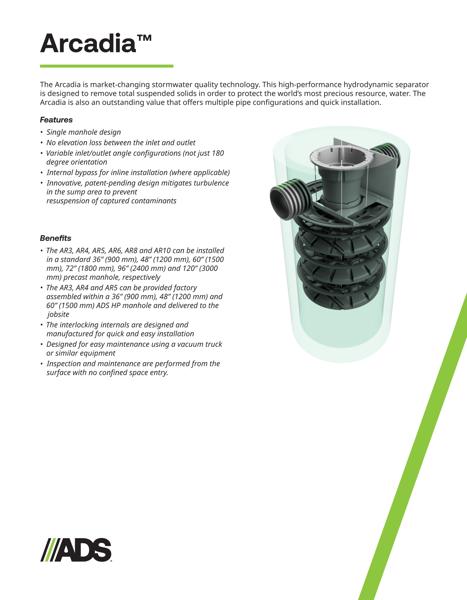

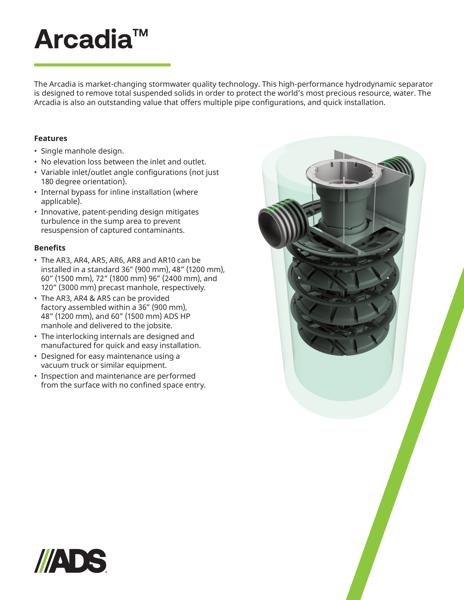

This document is the Arcadia Product Sheet. The features and benefits are explained for this hydrodynamic separator. Specifications for materials and design, installation and performance are detailed with photograph included.
The Arcadia is market-changing stormwater quality technology. This high-performance hydrodynamic separator is designed to remove total suspended solids in order to protect the world’s most precious resource, water. The Arcadia is also an outstanding value that offers multiple pipe configurations, and quick installation.
Features include single manhole design, no elevation loss between the inlet and outlet, variable inlet/outlet angle configurations (not just 180 degree orientation), internal bypass for inline installation and innovative, patent-pending design mitigates turbulence in the sump area to prevent resuspension of captured contaminants.
Benefits listed are the AR3, AR4, AR5, AR6, AR8 and AR10 can be installed in a standard 36” (900 mm), 48” (1200 mm), 60” (1500 mm), 72” (1800 mm) 96” (2400 mm), and 120” (3000 mm) precast manhole, respectively. The AR3, AR4 & AR5 can be provided factory assembled within a 36” (900 mm), 48” (1200 mm), and 60” (1500 mm) ADS HP manhole and delivered to the jobsite. The interlocking internals are designed and manufactured for quick and easy installation. Designed for easy maintenance using a vacuum truck or similar equipment. Inspection and maintenance are performed from the surface with no confined space entry.
Specifications for materials and design, installation and performance are explained.
A chart listing each Arcadia model with manhole diameter, NJDEP (50% removal) and OK-110 (80% removal) is provided. Photograph of the unit is included.
