4"-24" Fabricated 11.25 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings)

Filename:
4"-24" Fabricated 11.25 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings).pdf

Download Document (pdf) View in Browser
4"-24" Fabricated 11.25 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings)

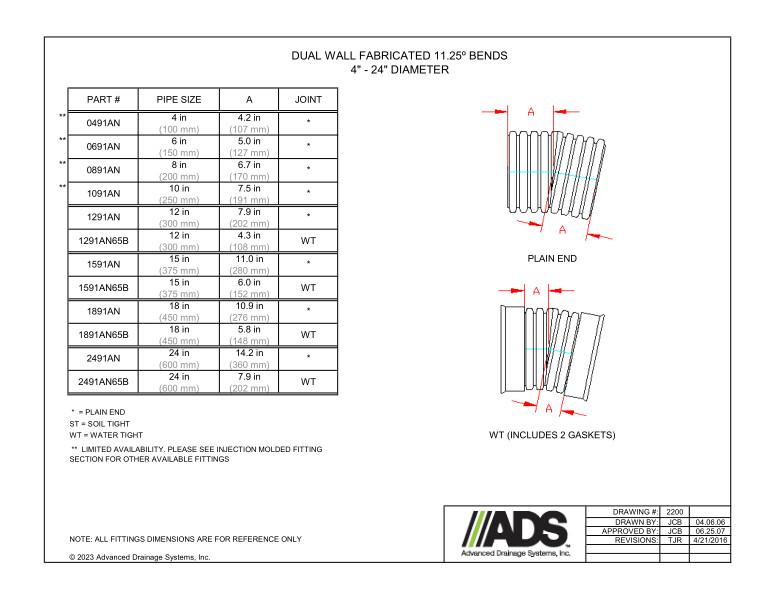

This document is the 4”-24” Fabricated 11.25 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings). Plain end & watertight diagrams and table provided.

The illustrations of the plain end Bend shows the angle and A dimensions. The WT (includes 2 gaskets) Bend shows the angle and A dimensions.

A table with part number, pipe size and A/Joint dimensions is provided.

All fittings dimensions are for reference only.

4"-24" Fabricated 11.25 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings)
