StormTech Liner System
Filename:
StormTech Liner System.pdf

This documents shows the StormTech Liner System details with descriptions of components.

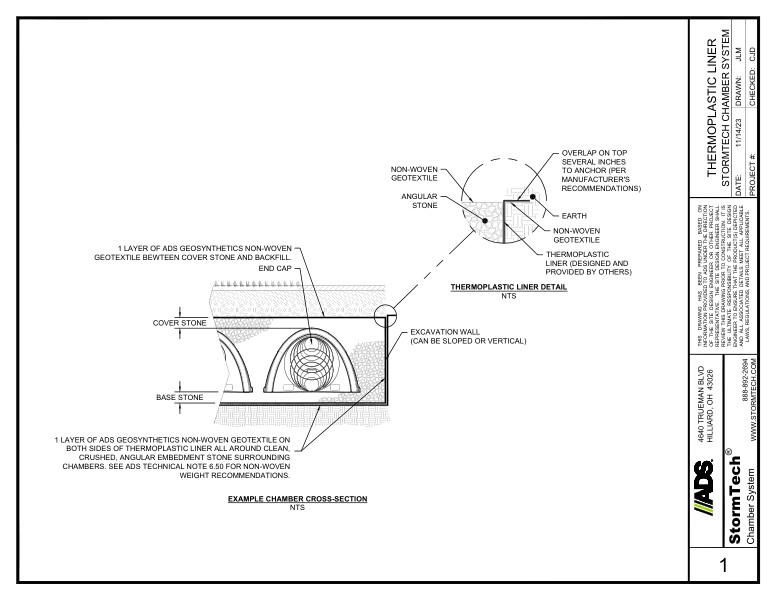

The example chamber cross section detail shows the 1 layer of ADS geosynthetic non-woven geotextile between cover stone and backfill, end cap, cover stone, base stone, excavation wall and 1 layer of ADS geosynthetic non-woven geotextile on both sides of thermoplastic liner all around clean, crushed, angular embedment stone surrounding the chambers.
The thermoplastic liner detail shows the non-woven geotextile, angular stone, overlap on top, earth and the thermoplastic liner location.
