10" Bronze Locking Grate Assembly Nyloplast Detail

Filename:
10" Bronze Locking Grate Assembly Nyloplast Detail.dwg

Download Document (dwg)
10" Bronze Locking Grate Assembly Nyloplast Detail

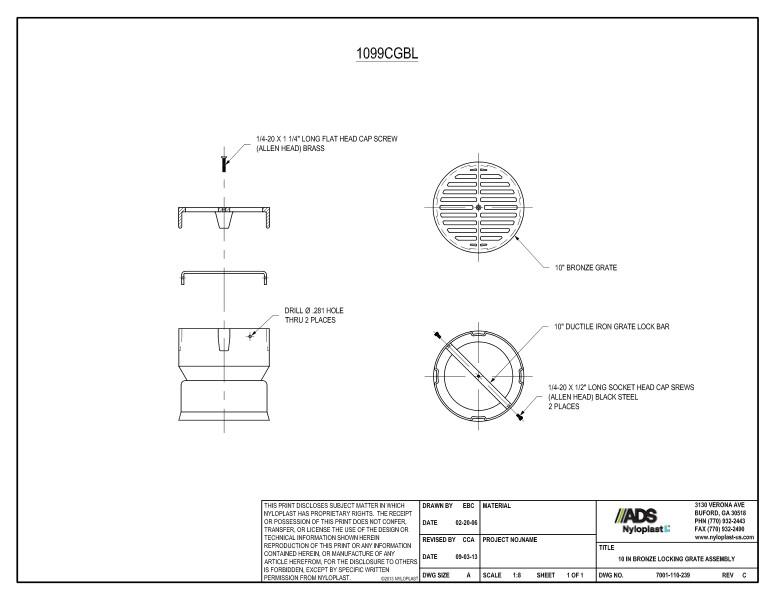

This document is the 10” Bronze Locking Grate Assembly Nyloplast Detail. It shows the illustrations with descriptions.

The side view illustration shows the Locking Grate with descriptions for ¼-20 x 4 ½” long flat head cap screw (allen head) brass, and drill hole thru 2 places.

The top down views show the 10” bronze grate, 10” ductile iron grate lock bar and ¼-20 x 4 ½” long socket head cap screws (allen head) black steel in 2 places.

10" Bronze Locking Grate Assembly Nyloplast Detail
