10" Dome Grate Assembly (Inline Drain) Nyloplast Detail

Filename:
10" Dome Grate Assembly (Inline Drain) Nyloplast Detail.pdf

10" Dome Grate Assembly (Inline Drain) Nyloplast Detail

This document is the 10" Dome Grate Assembly (Inline Drain) Nyloplast Detail. It shows the nyloplast ductile dome grate with dimensions.

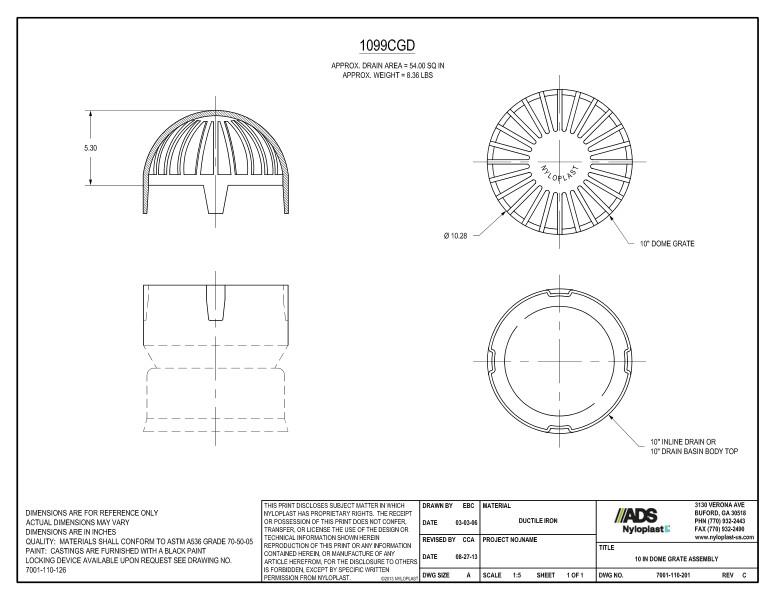

The illustration shows the nyloplast 10” dome grate with dimensions for approximate drain area of 54.00 SQ inches and approximate weight of 8.36 LBS. A top and side view is shown. 10” inline drain or 10” drain basin body top illustration included.

Notes detail that dimensions are for reference only and in inches. Materials shall be ductile iron per ASTM A536 grade 70-50-05. Castings are furnished with a black paint. The locking device is available upon request.
