10" Unsanded Manhole Adapter - N-12 Wall Bell x SWR Spigot Nyloplast Detail
Filename:
10" Unsanded Manhole Adapter - N-12 Wall Bell x SWR Spigot Nyloplast Detail.dwg
![10" Unsanded Manhole Adapter - N-12 Wall Bell x SWR Spigot Nyloplast Detail](https://assets.adspipe.com/m/1f054fa598c4564a/webimage-10-Unsanded-Manhole-Adapter-N-12-Wall-Bell-x-SWR-Spigot-Nyloplast-Detail.jpg)

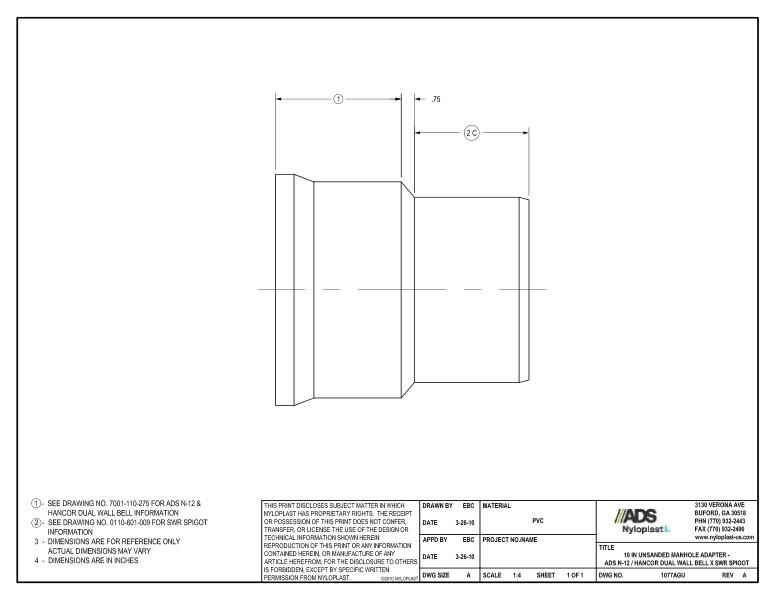

This document is the 10” Unsanded Manhole Adapter - N-12 Dual Wall Bell x SWR Spigot Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 references a drawing for SWR spigot information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
