This document is the 4”-10” Fabricated 90 Degree Bends (HDPE Dual Wall Fabricated Bends Fittings). A diagram and table provided.

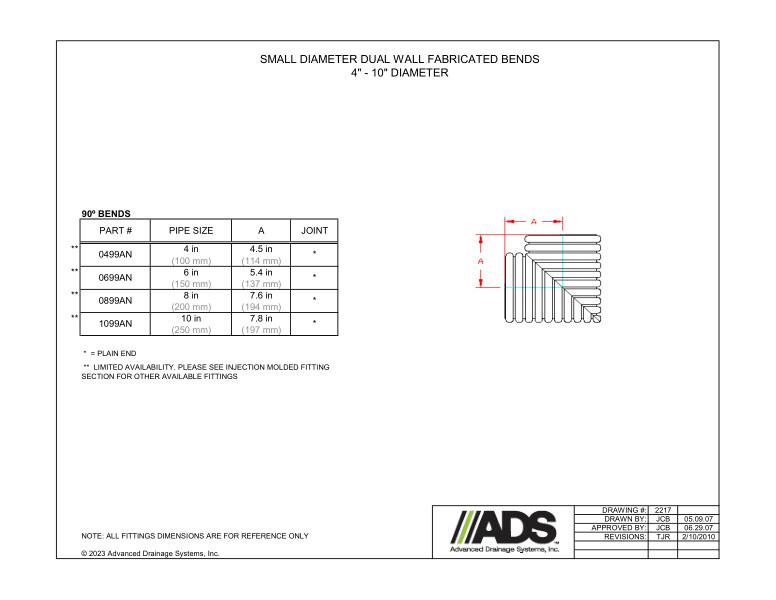

The illustration of the Bend shows the A dimensions.

A table with part number, pipe size and A/Joint dimensions is provided.

All fittings dimensions are for reference only.
