12" Standard Locking Grate Assembly Nyloplast Detail
Filename:
12" Standard Locking Grate Assembly Nyloplast Detail.pdf
This document is the 12" Standard Locking Grate Assembly Nyloplast Detail. It shows illustrations with descriptions.

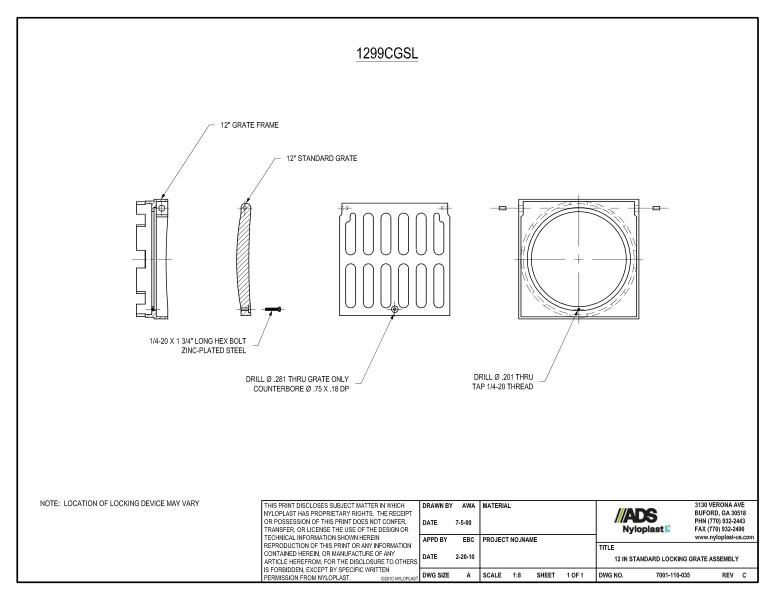

The side view illustrations show the 12” grate frame & 12” standard grate with ¼-20 x 1 ¾” long hex bolt zinc-plated steel. The top down view shows the grate with drill thru position and the frame drill thru thread position.
A note states that the location of locking device may vary.
