30" x 12" - 30" x 24" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)
Filename:
30" x 12" - 30" x 24" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings).pdf
![30" x 12" - 30" x 24" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)](https://assets.adspipe.com/m/62e4febf9d354132/webimage-30-x-12-30-x-24-Fabricated-Reducing-Tees-HDPE-Dual-Wall-Fabricated-Tees-Fittings.jpg)

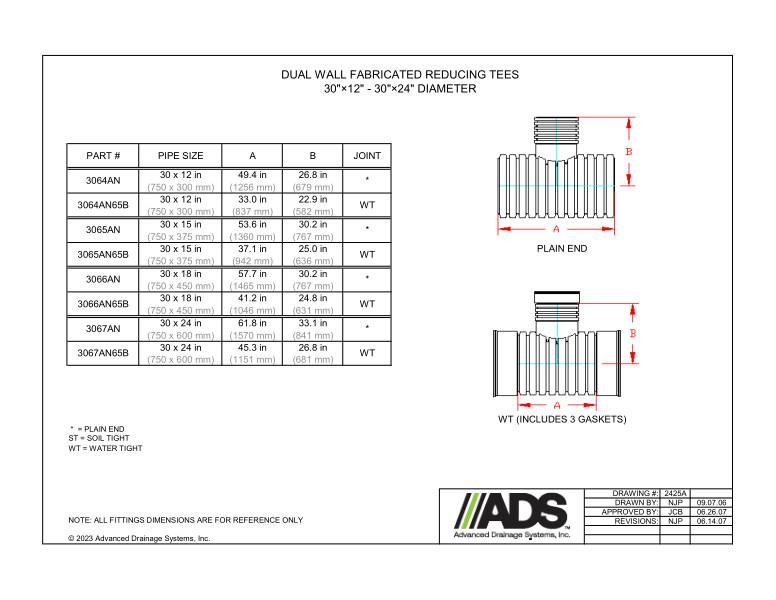

This document is the 30" x 12" - 30" x 24" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings). Diagrams with table provided.
The dual wall Fabricated Reducing Tees 30" x 12" - 30" x 24" diameter is shown in a Plain End diagram with A/B dimensions and a WT (includes 3 gaskets) Tee that shows A/B dimensions.
A table with the information for part number, pipe size and A/B/Joint sizes is provided.
All fittings dimensions are for reference only.
