This document is the 6" x 4" - 8" x 4" - 8" x 6" Injection Molded Bell/Spigot Reducers (HDPE Dual Wall Injection Molded Reducers Fittings). A diagram with table and notes provided.

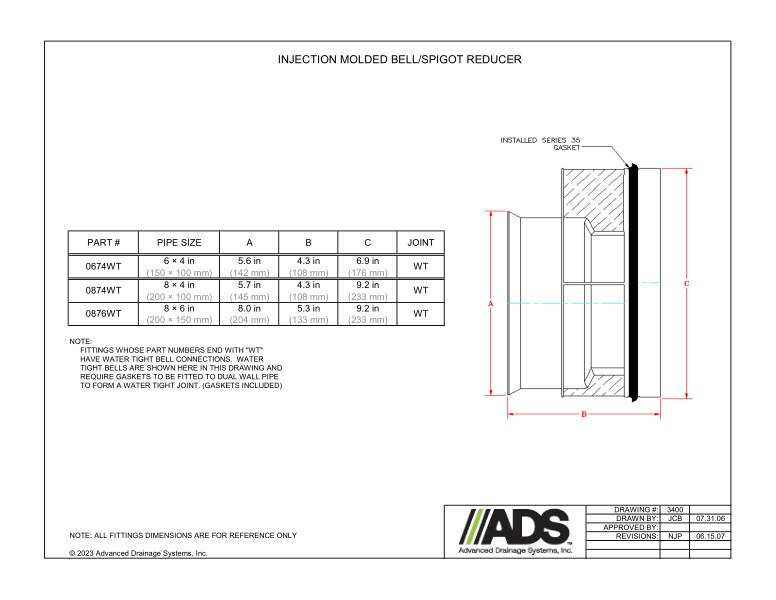

The illustration of the injection molded Bell/Spigot reducer shows the A/B/C dimensions with installed series 35 gasket.

A table with part number, pipe size and A/B/C/Joint dimensions is provided.

Fittings whose part numbers end with “WT” have water tight bell connections. Water tight bells require gaskets to be fitted to dual wall pipe to form a water tight joint. Gaskets are included. All fittings dimensions are for reference only.
