24" Solid Cover Assembly Nyloplast Detail

Filename:
24" Solid Cover Assembly Nyloplast Detail.dwg

24" Solid Cover Assembly Nyloplast Detail

This document is the 24" Solid Cover Assembly Nyloplast Detail. It shows the nyloplast grate with dimensions.

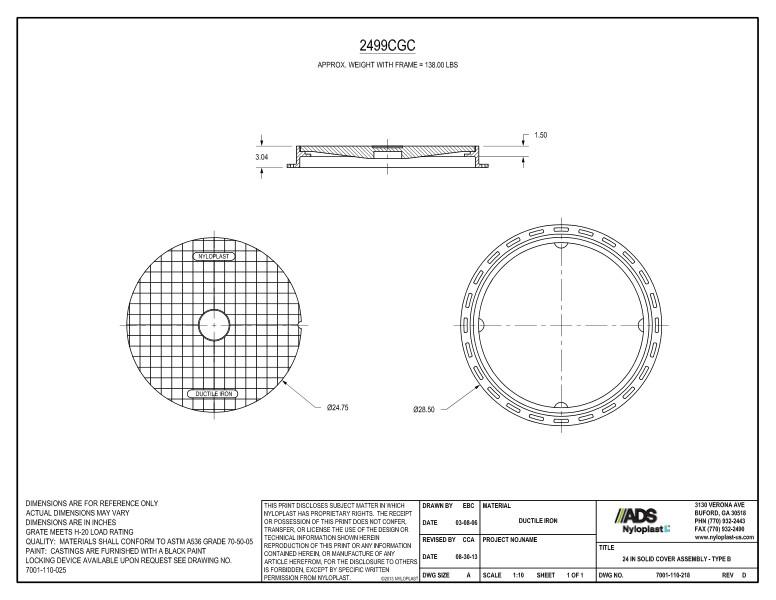

The illustrations show the nyloplast 24” grate and Solid Cover with dimensions with approximate weight of 138.00 LBS. A top and side view is shown.

Notes detail that dimensions are for reference only and in inches. Grate meets H-20 load rating. Materials shall conform per ASTM A536 grade 70-50-05. Castings are furnished with a black paint. The locking device is available upon request.
