30" Unsanded Manhole Adapter - HP Bell x SWR Spigot Nyloplast Detail
Filename:
30" Unsanded Manhole Adapter - HP Bell x SWR Spigot Nyloplast Detail.pdf
![30" Unsanded Manhole Adapter - HP Bell x SWR Spigot Nyloplast Detail](https://assets.adspipe.com/m/35c4e6cc0754cdb6/webimage-30-Unsanded-Manhole-Adapter-HP-Bell-x-SWR-Spigot-Nyloplast-Detail.jpg)

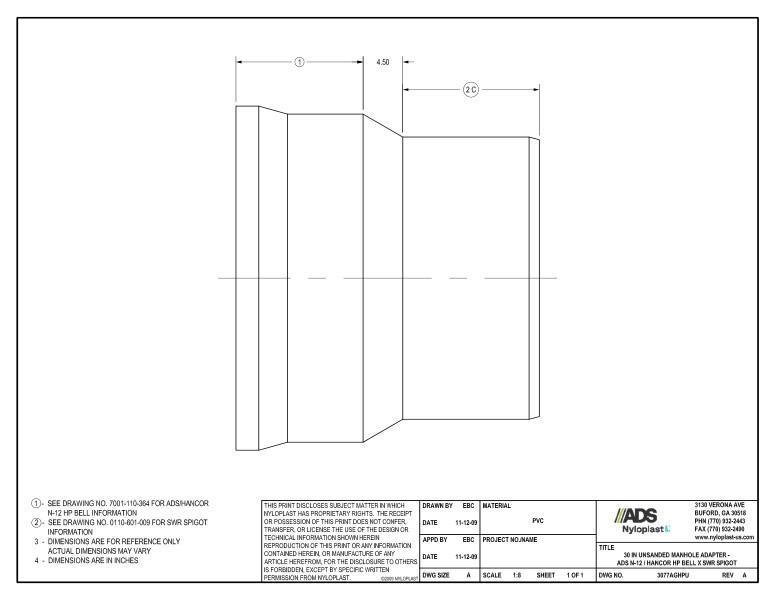

This document is the 30” Unsanded Manhole Adapter – HP Bell x SWR Spigot Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references ADS/Hancor N-12 HP Bell for more information. A note on dimension 2 references drawing for SWR spigot information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
