24 x 6 HP Tee with Gasketed SWR Bell Nyloplast Detail
Filename:
24 x 6 HP Tee with Gasketed SWR Bell Nyloplast Detail.pdf
![24 x 6 HP Tee with Gasketed SWR Bell Nyloplast Detail](https://assets.adspipe.com/m/1e00aa8fdc81057c/webimage-24-x-6-HP-Tee-with-Gasketed-SWR-Bell-Nyloplast-Detail.jpg)

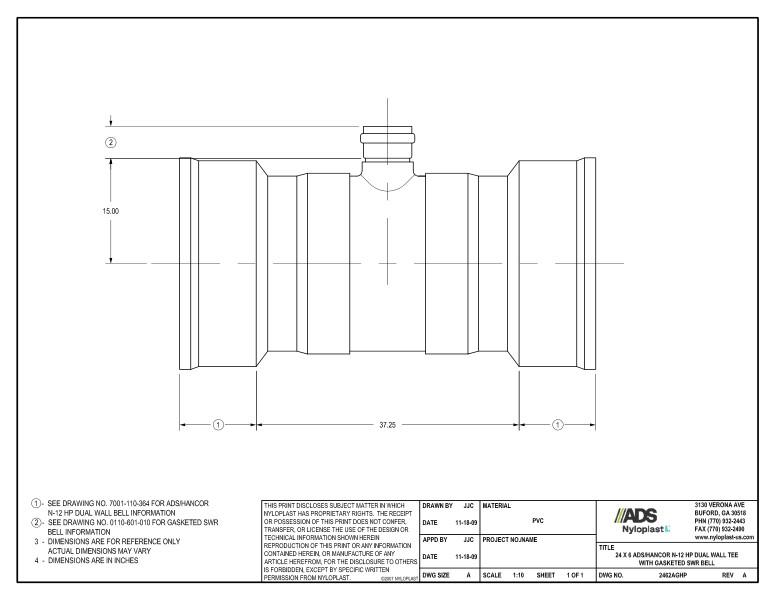

This document is the 24 x 6 HP Tee with Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references ADS/Hancor N-12 Bell for more information. A note on dimension 2 references Gasketed SWR Bell for more information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
