Dual Wall to RCP Manhole Adapter Fitting Water Tight Connection (HDPE Dual Wall Miscellaneous Fittings)
Filename:
Dual Wall to RCP Manhole Adapter Fitting Water Tight Connection (HDPE Dual Wall Miscellaneous Fittings).pdf
![Dual Wall to RCP Manhole Adapter Fitting Water Tight Connection (HDPE Dual Wall Miscellaneous Fittings)](https://assets.adspipe.com/m/458a80ac5b70a1ea/webimage-Dual-Wall-to-RCP-Manhole-Adapter-Fitting-Water-Tight-Connection-HDPE-Dual-Wall-Miscellaneous-Fittings.jpg)

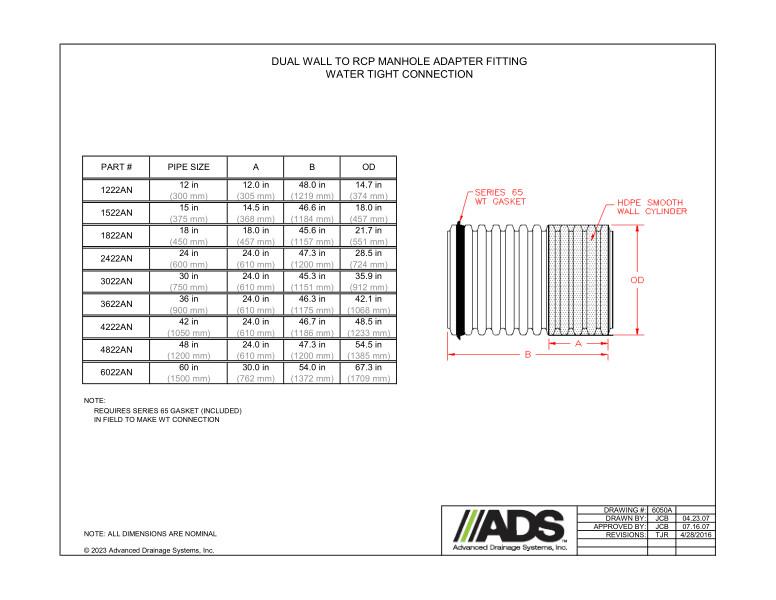

This document is the Dual Wall to RCP Manhole Adapter Fitting Water Tight Connection (HDPE Dual Wall Miscellaneous Fittings). A diagram with table provided.
The Dual Wall to RCP Manhole Adapter Fitting Water Tight Connection diagram is shown with HDPE smooth wall cylinder, Series 65 WT gasket. and A/B/OD dimensions. It requires Series 65 gasket (included) in field to make WT connection.
A table with the information for part number, pipe size and A/B/OD sizes is provided.
All dimensions are nominal.
