10" - 24" Drop In Grate Locking Options Nyloplast Detail

Filename:
10" - 24" Drop In Grate Locking Options Nyloplast Detail.dwg

Download Document (dwg)
10" - 24" Drop In Grate Locking Options Nyloplast Detail

This document is the 10” - 24" Drop In Grate Locking Options Nyloplast Detail. It shows the drain basin and inline drain illustrations with descriptions.

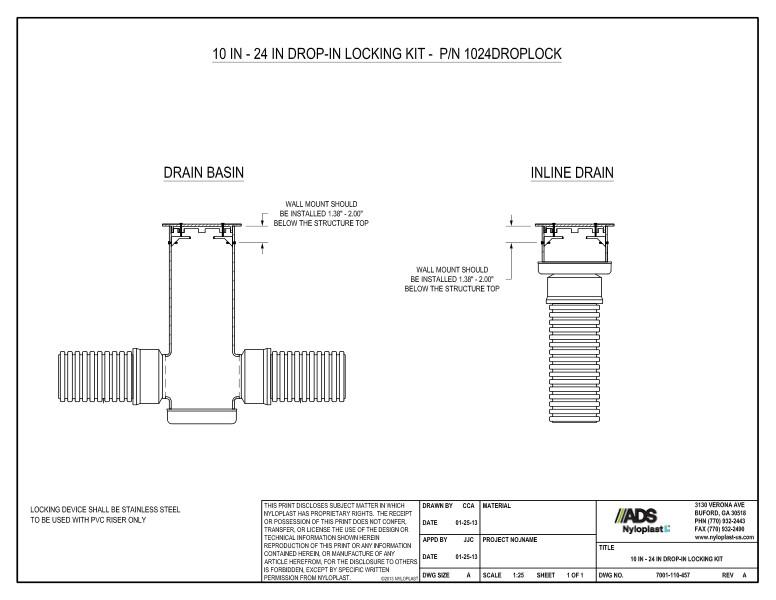

The illustration shows the 10” - 24" Drop In Locking Kit. Both the drain basin and inline drain note that the wall mount should be installed below the structure top.

Locking device shall be stainless steel to be used with PVC riser only.
