15" X 12" - 24" X 12" 45º Wyes - Bell/Bell (HP Storm Wyes Fittings Manual)
Filename:
15" X 12" - 24" X 12" 45º Wyes - Bell/Bell (HP Storm Wyes Fittings Manual).pdf

This document is the 15" x 12"- 24” x 12” 45º Wyes – Bell/Bell (HP Storm Wyes Fittings Manual). Diagram with table provided.

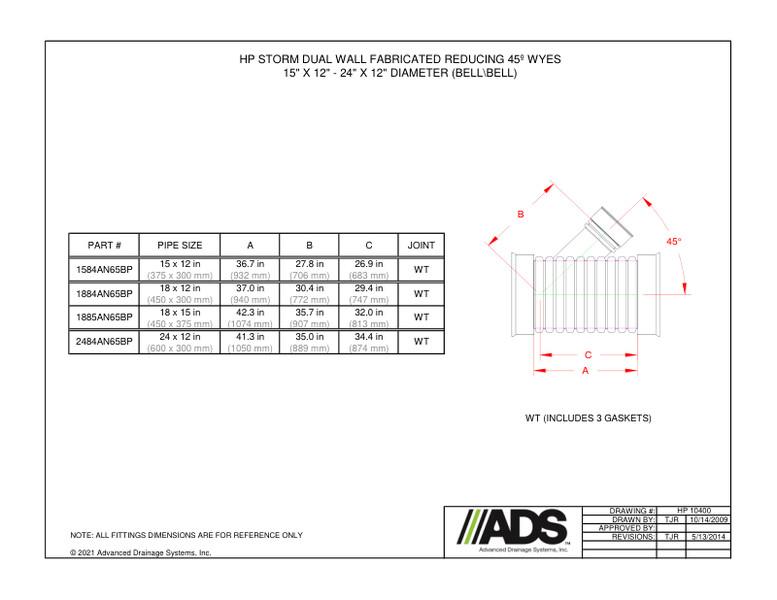

The diagram of the HP Storm Dual Wall Fabricated Reducing 45º Wyes 15" x 12"- 24” x 12” 45º Wyes – (Bell/Bell) with A/B/C dimensions and 45 degree arc with WT (includes 3 gaskets).
A table with part number, pipe size and A/B/C/Joint dimensions is provided.
All fittings dimensions are for reference only.
