21" - 24" Dual Wall Fabricated Standard WYES (HDPE Dual Wall Fabricated Wyes Fittings)

Filename:
21" - 24" Dual Wall Fabricated Standard WYES (HDPE Dual Wall Fabricated Wyes Fittings).pdf

21" - 24" Dual Wall Fabricated Standard WYES (HDPE Dual Wall Fabricated Wyes Fittings)

This document is the 21”-24” Dual Wall Fabricated Standard Wyes (HDPE Wyes Fittings). Plain end & watertight Wye diagrams and table provided.

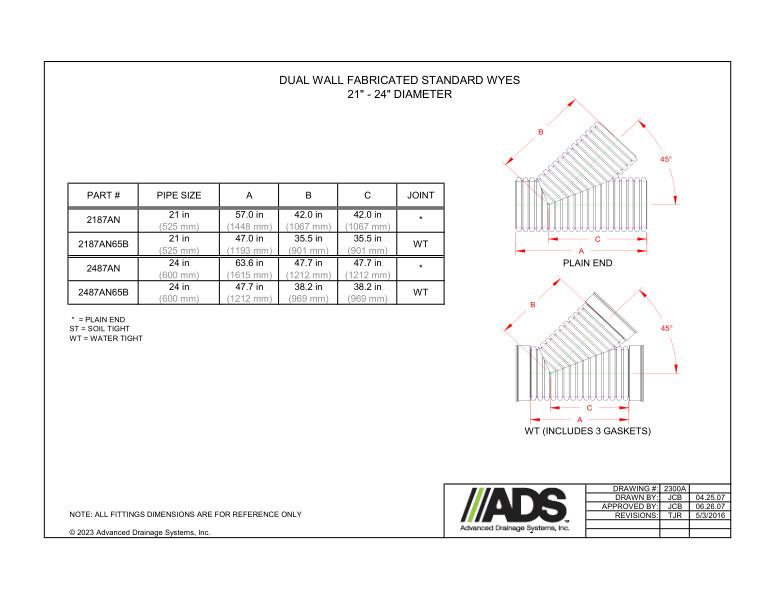

The illustrations of the plain end Wyes shows the 45 degree angle and A/B/C dimensions. The WT (includes 3 gaskets) Wyes shows the 45 degree angle and A/B/C dimensions.

A table with part number, pipe size and A/B/C/Joint dimensions is provided.

All fittings dimensions are for reference only.
