Drain Basin with Dissimilar Materials Connection to Corrugated Metal Pipe Nyloplast Detail
Filename:
Drain Basin with Dissimilar Materials Connection to Corrugated Metal Pipe Nyloplast Detail.pdf
This document is the Drain Basin with Dissimilar Materials Connection to Corrugated Metal Pipe Nyloplast Detail. Illustrations with descriptions shown.

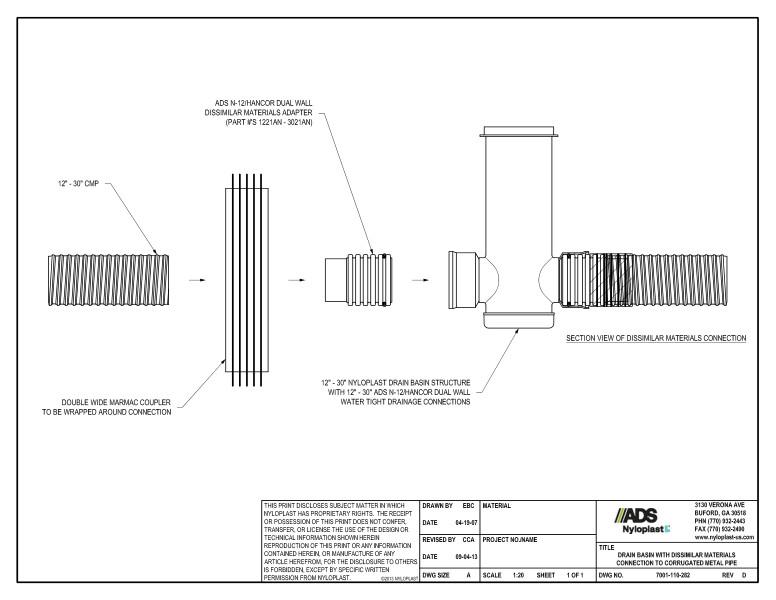

The details show the section view of dissimilar materials connection with the ADS N-12/Hancor dual wall dissimilar materials adapter, 12” – 30” CMP, double wide marmac coupler to be wrapped around connection, 12” – 30” nyloplast drain basin structure with 12” – 30” ADS N-12/Hancor dual wall water tight drainage connections.
