N-12 Dual Wall Elbow - 90 Degree Nyloplast Detail

Filename:
N-12 Dual Wall Elbow - 90 Degree Nyloplast Detail.pdf

N-12 Dual Wall Elbow - 90 Degree Nyloplast Detail

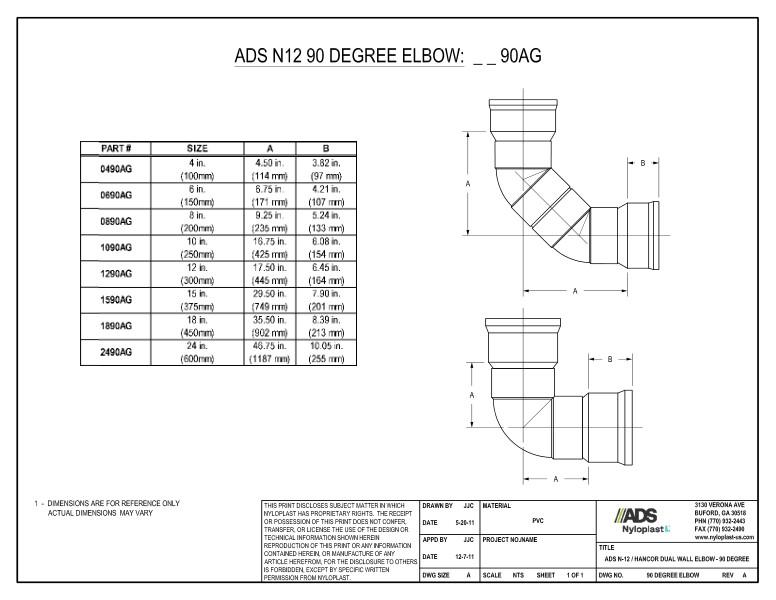

This document is the N-12 Dual Wall Elbow – 90 Degree Nyloplast Detail. Dimensions and nyloplast illustration shown.

A chart details the part numbers 0490AG, 0690AG, 0890AG, 1090AG, 1290AG, 1590AG, 1890AG and 2490AG with corresponding size and A/B dimensions.

A note states that dimensions are for reference only.

An illustration showing the dimensions is provided.
