60" x 4" - 60" x 10" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Reducing Wyes Fittings)

Filename:
60" x 4" - 60" x 10" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Reducing Wyes Fittings).pdf

60" x 4" - 60" x 10" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Reducing Wyes Fittings)

This document is the 60" x 4" - 60" x 10" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Wyes Fittings). Diagrams with table provided.

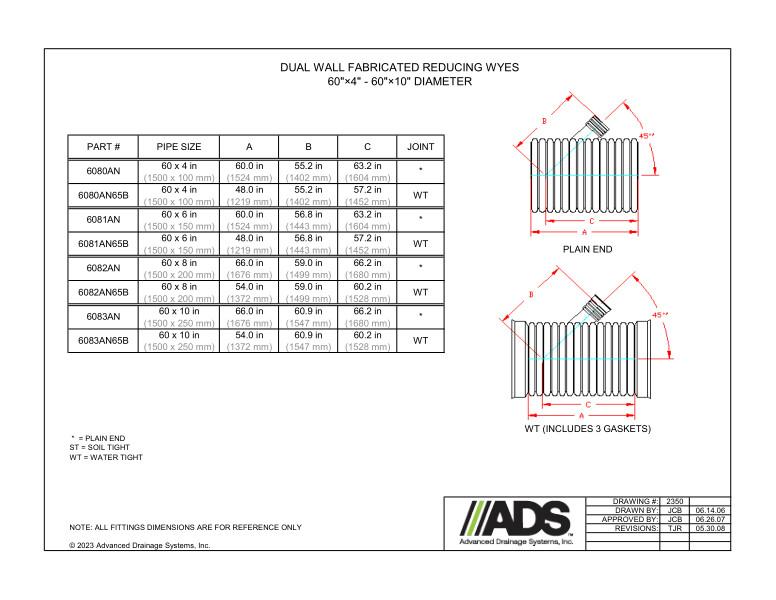

The diagram of the Dual Wall Fabricated Reducing Wyes 60" x 4" - 60" x 10" diameter shows the Plain End Wye with A/B/C dimensions and 45 degree arc. The WT (includes 3 gaskets) Wye is shown with A/B/C dimensions and 45 degree arc.

A table with part number, pipe size and A/B/C/Joint dimensions is provided.

All fittings dimensions are for reference only.
