15 x 8 N-12 Dual Wall Wye Nyloplast Detail
Filename:
15 x 8 N-12 Dual Wall Wye Nyloplast Detail.pdf
![15 x 8 N-12 Dual Wall Wye Nyloplast Detail](https://assets.adspipe.com/m/588af117a9aff5c4/webimage-15-x-8-N-12-Dual-Wall-Wye-Nyloplast-Detail.jpg)

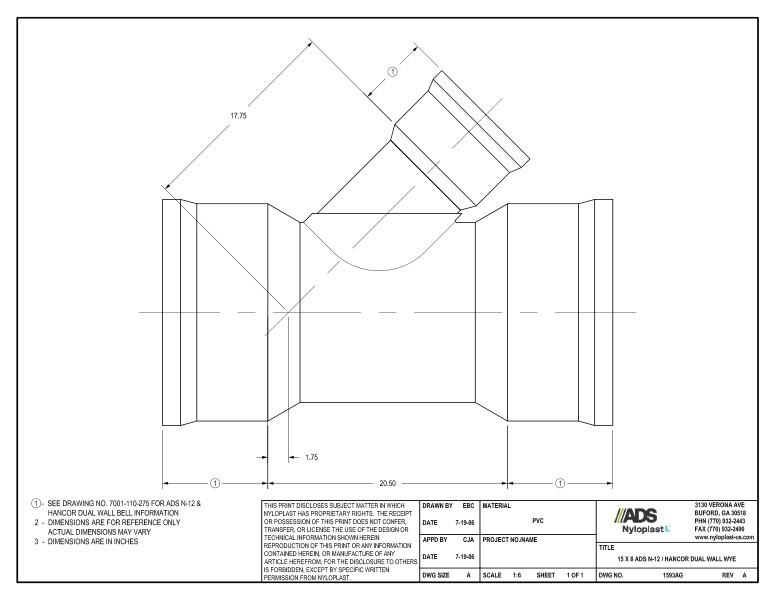

This document is the 15 x 8 N-12 Dual Wall Wye Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
