This document is the 4”-24” Fabricated Stub Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings). Stub and manifold diagrams with table and notes provided.

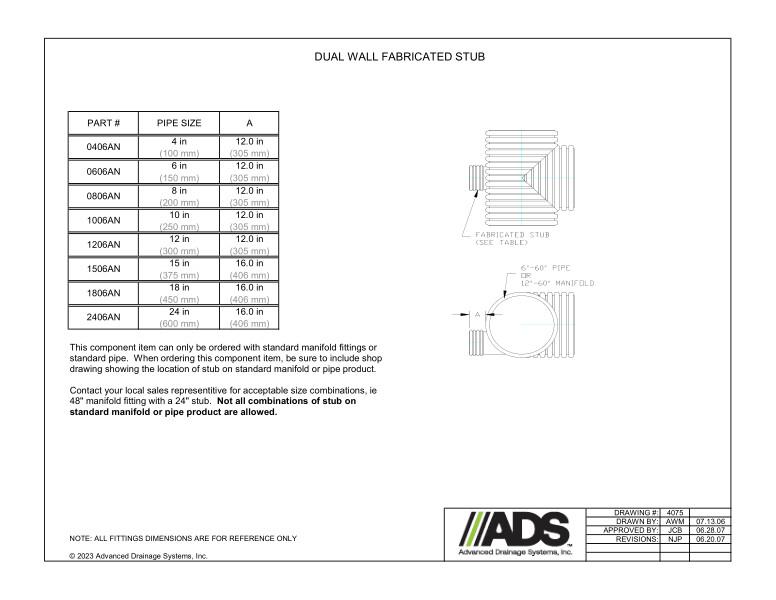

The dual wall fabricated stub is shown in a diagram. The 6”-60” pipe or 12”-60” manifold diagram is shown.

A table with the information for part number, pipe size and A sizes is provided.

This component item can only be ordered with standard manifold fittings or standard pipe. When ordering this component item, be sure to include shop drawing showing the location of stub on standard manifold or pipe product. Contact your local sales representative for acceptable size combinations, i.e. 48" manifold fitting with a 24" stub. Not all combinations of stub on standard manifold or pipe product are allowed.

All fittings dimensions are for reference only.
