18" x 4" - 30" x 8" Reducing Tap Wye Soil TIght/Water Tight Connection (HDPE Dual Wall Miscellaneous Fittings)
Filename:
18" x 4" - 30" x 8" Reducing Tap Wye Soil TIght/Water Tight Connection (HDPE Dual Wall Miscellaneous Fittings).pdf
![18" x 4" - 30" x 8" Reducing Tap Wye Soil TIght/Water Tight Connection (HDPE Dual Wall Miscellaneous Fittings)](https://assets.adspipe.com/m/77889023cd8e4f95/webimage-18-x-4-30-x-8-Reducing-Tap-Wye-Soil-TIght-Water-Tight-Connection-HDPE-Dual-Wall-Miscellaneous-Fittings.jpg)
This document is the 6" x 4" – 15” x 8” Tap Reducer Soil Tight/Water Tight Connections (HDPE Dual Wall Miscellaneous Fittings). A diagram with table provided.

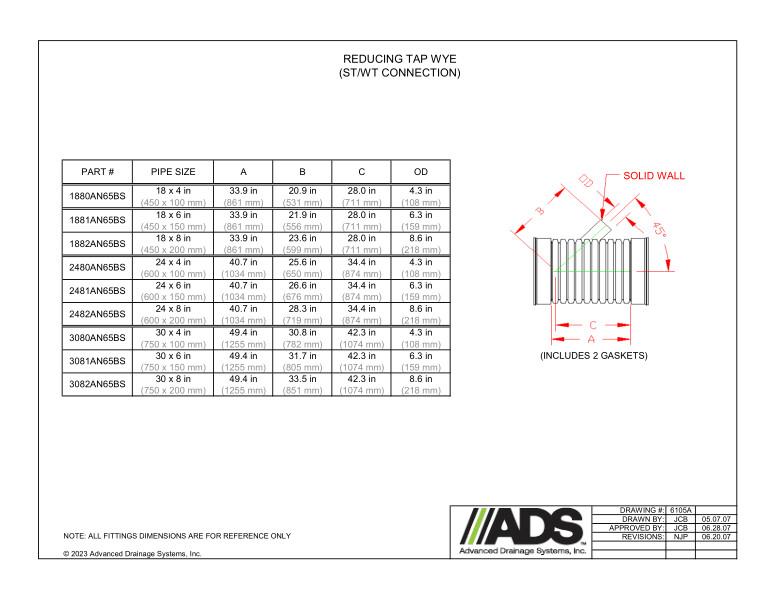

The Reducing Tap Wye (ST/WT Connection) diagram is shown with solid wall and A/B/OD dimensions. It includes 2 gaskets.
A table with the information for part number, pipe size and A/B/OD sizes is provided.
All fittings dimensions are for reference only.
